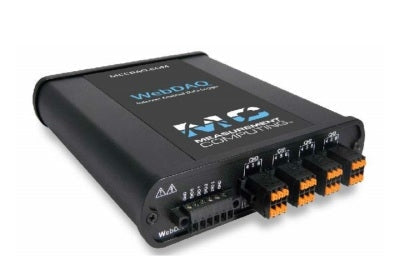

WebDAQ 904 Internet Enabled Universal Input logger (4ch)
WebDAQ 904 Internet Enabled Universal Input logger (4ch)

WebDAQ 904 Internet Enabled Universal Input logger (4ch)

£1,350.00
£1,350.00
(-0%)
(Price excludes VAT)
Universal input data logger, internet-enabled, with 4 simultaneous channels, 24-bit resolution, 100 S/s/ch max sample rate, and 4 digital I/O
Model: WebDAQ 904
Subtotal: £1,350.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

WebDAQ 904 Internet Enabled Universal Input logger (4ch)

WebDAQ 904 Internet Enabled Universal Input logger (4ch)

£1,350.00
WebDAQ 904 Internet Enabled Universal Input logger (4ch)

WebDAQ 904 Internet Enabled Universal Input logger (4ch)

£1,350.00
Description

WebDAQ devices are stand-alone data loggers designed for remote monitoring and control. All the intelligence is built into the WebDAQ, eliminating the need for a PC or additional software. By using the embedded WebDAQ web server, users can easily configure simple or sophisticated applications, log data, update digital outputs and/or send notifications based on alarm conditions, and view real-time data from any location and any device with a web browser.

WebDAQ904 App

WebDAQ 904 features four analog inputs with the ability to measure multiple signal types including voltage, current, resistance, strain gauges, RTDs, thermocouples, and load cells.

Features
  • Log four simultaneous, Universal analog inputs
  • Support for voltage (up to ±60 V), current, RTD, thermocouples, resistance, and bridge-based sensors
  • Voltage and current excitation
  • 24-bit resolution
  • 100 S/s/ch max sample rate
  • Built-in web server allows access from any device with a web browser
  • WiFi support for wireless operation
  • View data in real time or post acquisition
  • Virtually unlimited storage (3GB internal storage, plus SD card and USB flash drive slots)
  • Easy, flexible task scheduling
  • Four isolated digital I/O for triggers and alarms
  • Alarming and notifications with email and SMS messaging
  • Ability to export .csv data for Excel® and MATLAB®
  • View entire WebDAQ Series
  • WebDAQ firmware uses open-source software components
  • REST API - allows users to communicate with the device outside of the web interface to retrieve information about the system, schedules, and jobs, get acquisition and alarm status, and to start/stop an acquisition
Specifications



ANALOG INPUT
CHANNELS RESOLUTION MAX SAMPLE RATE
4
Voltage, Current, Thermocouples, RTD,
Resistance, Bridge-based Sensors		 24-bit 100 S/s/ch
DIGITAL I/O MEMORY POWER
CHANNELS MEMORY POWER
4 Internal 3GB, optional SD card,
and USB slots		 External AC Adapter Included




Technical

WebDAQ 904 Universal Input Data Logger (4 channel) datasheet

WebDAQ Brochure

Applications
