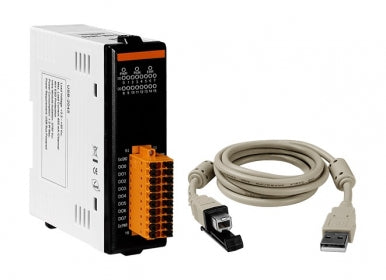

USB-2045 USB I/O Module with 16-ch DO with Overload Protection
USB-2045 USB I/O Module with 16-ch DO with Overload Protection

USB-2045 USB I/O Module with 16-ch DO with Overload Protection

£123.00
£123.00
(-0%)
(Price excludes VAT)
USB Based 16-channel Digital Output module (Sink, NPN) with Overload Protection. Includes 1.5m USB Cable
Model: USB-2045
Subtotal: £123.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

USB-2045 USB I/O Module with 16-ch DO with Overload Protection

USB-2045 USB I/O Module with 16-ch DO with Overload Protection

£123.00
USB-2045 USB I/O Module with 16-ch DO with Overload Protection

USB-2045 USB I/O Module with 16-ch DO with Overload Protection

£123.00
Description

The USB-2045 is a full-speed USB I/O device with 16 digital output channels. It also offers 16 LED indicators that can be used to monitor the status of the digital output channels. A dual watchdog function is provided with configurable power-on and safe values, ensuring the device operates continuously, even in harsh environments.

Also provided is an API library and demos with source code for Windows and Linux users to develop their own USB applications with various development tools (VB/C++/C#.NET/VB.NET/LabVIEW). Therefore, the USB-2045/USB-2045 is the perfect choice for you to implement I/O expansion via a plug-and-play USB interface.

Features
  • 16-channel sink type digital output
  • Short Circuit, Overload and Overvoltage Protection
  • Configurable Power-on Value Settings
  • Safety functionality when communication failed
  • No external power supply (USB Bus Powered)
  • Plug-and-Play without driver
  • Lockable USB cable
  • Support firmware update via USB
  • Utility tool for module configuration and I/O testing easily and quickly
  • Provide API library (VB/C++/C#.NET/VB.NET/LabVIEW)
  • Module supported for Win2000/XP , Win7/8/10/11 (32/64 bit) and Linux (32/64 bit)
Specifications
CPU Module
Watchdog Timer 1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable)
EMS Protection
ESD (IEC 61000-4-2) 4 kV contact for each terminal
8 kV air for random point
LED Indicators
Status 3 x Power and Communication
16 x Digital Output
Digital Output
Channels 16
Type Open Collector, Sink (NPN)
Load Voltage +3.5 ~ +50 VDC
Load Current 650 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A (with short-circuit protection)
Power on Value Yes, Programmable
Safe Value Yes, Programmable
USB
Specification USB 2.0 Full-Speed (12Mbps)
Power
Consumption 1.2 W
Mechanical
Dimensions (mm) 33 x 110 x 96 (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing



Technical

USB-2045 USB Digital Output module datasheet
