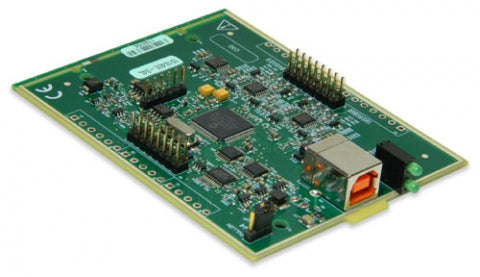

USB-204-OEM 12-Bit, 500 kS/s, Multifunction OEM

8 SE analog inputs

±10 V input range

12-bit resolution

500 kS/s sample rate

8 digital I/O

One 32-bit counter

16 pin dual-row 0.100” headers (2x8) for ribbon cable connectivity

Board only (no case, CD, or USB cable)

Cased Version Available

Software

Support for DAQami, easy-to-use advanced data logging application to acquire,
view, and log data

TracerDAQ® software included for acquiring and displaying data and generating signals

Universal Library includes support for Visual Studio® and Visual Studio® .NET, including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET

Universal Library for Android™ includes support and examples for the Android 3.1 platform (API level 12) and later

Example ready-to-run demo apps for Android are available on Google Play™

InstaCal™ software utility for installing, calibrating, and testing

ULx for NI LabVIEW™

DAQFlex open-source software framework

Comprehensive drivers for DASYLab®

Supported Operating Systems: Windows® 8/7/Vista®/XP, 32-bit or 64-bit;
Android 3.1 (API level 12) and later; Linux®, and Mac® platforms
supported by the DAQFlex framework

Product Specifications
