TCD-108/S400 8-ch K-type Thermocouple Data Logger (-40 to +400'C)

£2,897.00; £2,897.00; (-0%)
Unit price: per

(Price excludes VAT)

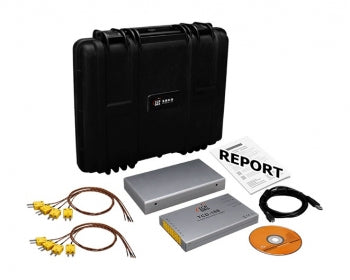

8-channel Thermocouple data logger. sampling rates from 50mS. 400'C operating temperature capable. Battery operated. Includes TCD-108 data logger, iTCLogger software, USB 2.0 cable, thermal barrier, carry case, a quick start guide and k-type thermocouples.

Model: TCD-108/S400

Quantity:

Subtotal: £2,897.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

TCD-108/S400 8-ch K-type Thermocouple Data Logger (-40 to +400'C)

£2,897.00

Quantity:

TCD-108/S400 8-ch K-type Thermocouple Data Logger (-40 to +400'C)

£2,897.00

Description
Features
Specifications
Technical
Applications

Description

TCD-108 temperature measurement module can provide high-precision temperature measuring capability with standard K-type thermocouples.

The TCD-108 has built-in over-temperature protection, intelligent temperature data logging capability, automatic analysis result output (highest Tin temperature, tinning time, heating rate, etc.).

Features

8-channel K-type thermocouple (± 0.5'C Accuracy)
Thermocouple length: 50 cm
Sampling Rate: 50 ms to 60000 seconds
Max. recording for each channel: 300,000
Traceable temperature data
Easy-to-use software interface
Powered by 4x AAA batteries (60 hours @ 50 ms sampling rate)
400'C Operating Temperature with Thermal Insulation Box

Specifications

LED Indicators
Status	Log : Yellow for data logger Power : Green for normal operation Error : Red for error indicator

Temperature Measurement
Sensor Type	K-Type
Channels	8
Range	-270°C to 1372°C (-454°F to 2502°F)
Resolution	0.1ºC
Accuracy	±0.5ºC

System
Data Logger	300,000 records

USB
Specification	USB 2.0 Full-Speed

Power
Consumption	0.06 W Max.
Battery Usage Life	Operating for more than 60 hours with heavy-duty AAA battery x 4

Mechanical
Dimensions (mm)	104 x 169 x 21 (W x L x H)

Environment
Operating Temperature	-40 to +400°C
Humidity	10 to 95% RH, Non-condensing

Technical

TCD-104/108 High Range Temperature data logger datasheet

Applications

SMD assembly manufacturing, PC board manufacturing, footware manufacturing, food industry, pharmaceutical industry and any temperature measurement required industries.
