TCD-104/S400 4-ch K-type Thermocouple Data Logger (-40 to +400'C)
TCD-104/S400 4-ch K-type Thermocouple Data Logger (-40 to +400'C)

TCD-104/S400 4-ch K-type Thermocouple Data Logger (-40 to +400'C)

£2,556.00
£2,556.00
(-0%)
(Price excludes VAT)

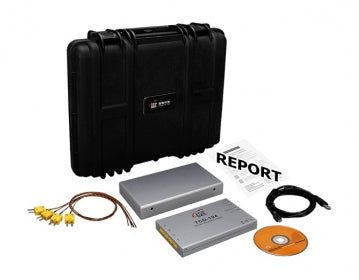

4-channel Thermocouple data logger. sampling rates from 50mS. 400'C operating temperature capable. Battery operated. Includes TCD-104 data logger, iTCLogger software, USB 2.0 cable, thermal barrier, carry case, a quick start guide and k-type thermocouples.
Model: TCD-104/S400
Subtotal: £2,556.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

TCD-104/S400 4-ch K-type Thermocouple Data Logger (-40 to +400'C)

TCD-104/S400 4-ch K-type Thermocouple Data Logger (-40 to +400'C)

£2,556.00
TCD-104/S400 4-ch K-type Thermocouple Data Logger (-40 to +400'C)

TCD-104/S400 4-ch K-type Thermocouple Data Logger (-40 to +400'C)

£2,556.00
Description

TCD-104 temperature measurement module can provide high-precision temperature measuring capability with standard K-type thermocouples.

The TCD-104SMD assembly manufacturing, PC board manufacturing, footware manufacturing, food industry, pharmaceutical industry and any temperature measurement required industries.


has built-in over-temperature protection, intelligent temperature data logging capability, automatic analysis result output (highest Tin temperature, tinning time, heating rate, etc.).

Features
  • 4-channel K-type thermocouple (± 0.5'C Accuracy)
  • Thermocouple length: 50 cm
  • Sampling Rate: 50 ms to 60000 seconds
  • Max. recording for each channel: 450,000
  • Traceable temperature data
  • Easy-to-use software interface
  • Powered by 4x AAA batteries (60 hours @ 50 ms sampling rate)
  • 400'C Operating Temperature with Thermal Insulation Box
  • IP20 case (IP40 in Thermal Box)
Specifications
LED Indicators
Status Log : Yellow for data logger
Power : Green for normal operation
Error : Red for error indicator
Temperature Measurement
Sensor Type K-Type
Channels 4
Range -270°C to 1372°C (-454°F to 2502°F)
Resolution 0.1ºC
Accuracy ±0.5ºC
System
Data Logger 450,000 records
USB
Specification USB 2.0 Full-Speed
Power
Consumption 0.06 W Max.
Battery Usage Life Operating for more than 60 hours with heavy-duty AAA battery x 4
Mechanical
Dimensions (mm) 104 x 169 x 21 (W x L x H)
Environment
Operating Temperature -40 to +400°C
Humidity 10 to 95% RH, Non-condensing



Technical

TCD-104/108 High Range Temperature data logger datasheet
