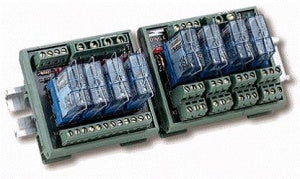

RM-104 4-channel SPDT Power Relay Module

£60.00; £60.00; (-0%)
Unit price: per

(Price excludes VAT)

The RM-104 has 4 channels with SPDT Relays, with a set of NC & NO contacts for each channel. These units are ideal for protecting Data Acquisition circuitry against overloads and allow handling of larger loads.

Model: RM-104

Quantity:

Subtotal: £60.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

RM-104 4-channel SPDT Power Relay Module

£60.00

Quantity:

RM-104 4-channel SPDT Power Relay Module

£60.00

Description
Features
Specifications
Technical
Applications

Description

The RM series relay modules can be mounted on different DIN rail, such as TS-15, TS-32 or TS-35. Every channel of RM-104, RM-108, and RM-116 contains 1 Form C relay while every channel of RM-204, RM-208, and RM216 contains 2 Form C relays. The reverse polarity protection is provided to prevent improper operation. Every channel also has an LED to indicate its status. RM series modules include 4-channel relays, 8-channel relays and 16-channel relays versions for different applications.

NOTE: Limited stock availability. Please call to check prior to any potential order.

Features

Specifications

Rated current for each relay: 16 A

One NC and one NO contacts for each channel

Max. Peak current: 30 A

Max. Switching voltage: 400 VAC

Standard contact material: AgCd O

Input Voltage: DC 24 V

The coil current is 22 mA.
Can be used to sink type of digitial output module only.

Rated voltage for each relay: 250 VAC

79 mm x 87 mm x 63 mm (L x W x H)

Technical

RM Power Relay Module Datasheet

Applications
