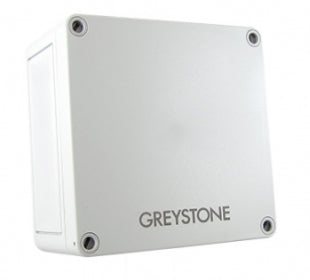

PMOSXX Particulate Matter Sensor, Outside, Analog Op

• Laser scatter method sensor
• Highly accurate and reliable PM measurements
• Detection of environmental dusts and other particles
• LCD Display
• Network communication

• SENSOR: Laser scatter method (field replaceable)
• PARTICULATE SIZE PM1.0, PM2.5, PM4.0, or PM10 (selectable)
• MASS CONCENTRATION RANGE 0 - 1000 ug/m³
• RESOLUTION 1 ug/m³
• ACCURACY ±10 ug/m³ (0 - 100 ug/m³ ), ±10% (100 - 1000 ug/m³ )
• RESPONSE TIME 1 second
• SENSOR LIFETIME >8 years
• ANALOG MODEL
  Consumption: 75 mA max @ 24 Vdc, 100 mA max @ 24 Vac
  Output Signals: 4-20 mA (sourcing) or 0-5 Vdc / 0-10 Vdc (selectable)
  Output Drive Capability: Current - 550Ω max Voltage - 5,000Ω min
  Output Scale: 0 to 1000 ug/m3 (menu selectable)
• BACnet® MODEL
  Consumption: 50 mA max @ 24 Vdc, 80 mA max @ 24 Vac
  Interface: MS/TP, 2 wire RS-485
  Baud Rate: 9600, 19200, 38400, 57600, 76800 or 115200 (menu selectable)
  Address Range: 0 - 127 (menu selectable)
• MODBUS MODEL
  Consumption: 50 mA max @ 24 Vdc, 80 mA max @ 24 Vac
  Interface: 2 wire RS-485, RTU
  Baud Rate: 9600, 19200, 38400, 57600, 76800 or 115200 (menu selectable)
  Address Range: 1-255 (menu selectable)
• PM ALARM RELAY (OPTIONAL)
  Contact Ratings: Form C (NO + NC), 2A @ 140 Vac, 2A @ 30 Vac
  Setpoint + Hysteresis: Programmable via menu
• DISPLAY
  Internal LCD for setup
  Display values
  Mass Concentration: 0 - 1000 ug/m³
  Air Quality Index: 0 - 500 AQI Good/Moderate/Poor (menu selectable)
• POWER SUPPLY 24 Vac/dc ±20% (non-isolated half-wave rectified)
• PROTECTION CIRCUITRY Reverse voltage protected, over-voltage protected
• OPERATING CONDITIONS -10 to 60°C (14 to 140°F), 20 to 80 %RH non-condensing
• STORAGE CONDITIONS -30 to 60°C (-22 to 140°F)
• ENCLOSURE Polycarbonate, IP65 (NEMA 4X)
• ENCLOSURE DIMENSIONS 130mm W x 130mm H x 75mm D (5.12” x 5.12” x 2.95”)
• WIRING Screw terminal block (14 to 22 AWG)
• COUNTRY OF ORIGIN Canada

Outside Particulate Transmitter / sensor datasheet
