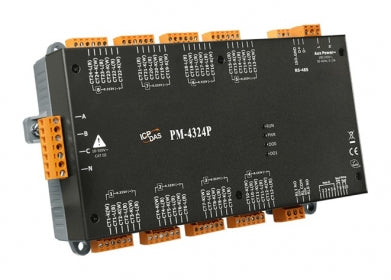

PM-4324P Modbus RTU, Multi-Channel Power Meter (for 333mV CT's)
PM-4324P Modbus RTU, Multi-Channel Power Meter (for 333mV CT's)

PM-4324P Modbus RTU, Multi-Channel Power Meter (for 333mV CT's)

£1,134.00
£1,134.00
(-0%)
(Price excludes VAT)
The PM-4324 Multi-Channel Power Meter monitors up to 8 three phase circuits or 24 single phase circuits, or any combination of single or three phase circuits. For use with 3rd party 333mV secondary CT's; RS485 Modbus RTU.
Model: PM-4324P
Subtotal: £1,134.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

PM-4324P Modbus RTU, Multi-Channel Power Meter (for 333mV CT's)

PM-4324P Modbus RTU, Multi-Channel Power Meter (for 333mV CT's)

£1,134.00
PM-4324P Modbus RTU, Multi-Channel Power Meter (for 333mV CT's)

PM-4324P Modbus RTU, Multi-Channel Power Meter (for 333mV CT's)

£1,134.00
Description

The PM-4324P series multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits.

The PM-4324P series can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324P series perfect for multi-tenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panelboards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device.

You can use CT's that you currently own with the PM-4324P (without CTs) Power Meter. The CT inputs of the PM-4324P can be directly input from the secondary side of 333mV CT.

Features
  • Bi-directional Energy
  • 8 Three Phase Circuits or 24 Single Phase Circuits
  • True RMS Power Measurements
  • Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
  • Voltage Measurements Up to 500 V
  • Easy install with split core CT
  • W Accuracy Better than 5% (PF=1)
  • Total Harmonic Distortion (THD)
  • Support Modbus RTU Protocol
  • Support 2 Power Relay Output (Form A)
Specifications
AC Power Measurement
Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops Multi-circuit
Input Voltage 10 ~ 500 V
Input Frequency 50/60 Hz
W Accuracy Better than 5% (PF=1)
Power Parameter Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate 1 Second
CT
Includes CTs 0
Power
Input Range +85 ~ +264 VAC (277 VAC available)
Consumption 6 W
Alarm Output Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC
Mechanical
Casing Metal
Dimensions (mm) 237 x 57 x 134 (W x L x H)
Installation DIN-Rail & wall mounting
Environment
Operating Temperature -20 ~ +70 °C
Storage Temperature -25 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing



Technical

PM-4324P Multichannel power meter datasheet

Applications
  • Generator monitoring
  • Switchgear distribution systems
  • Energy Management
  • Power quality analysis
