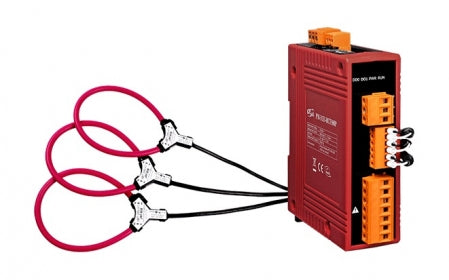

Compact Smart 3-phase Energy Meter for AC Current's up to 1kA, utilising Rogowski coils. Output is via ModbusRTU, ModbusTCP or CANopen protocol. Variants and pricing available from Recommended products section (base of page)

Model: PM-3133-RCT

Quantity:

Subtotal: £914.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

PM-3133-RCT Series 3-phase Compact Smart Energy Meter, 500/1kA

£914.00

Quantity:

PM-3133-RCT Series 3-phase Compact Smart Energy Meter, 500/1kA

£914.00

Description
Features
Specifications
Technical
Applications

Description

NOTE: Please select required Current Range & Communications protocol variant from the Recommended products section at the base of this page.

The advanced Smart Power Meter PM-3133-RCT series gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<1%, PF=1; Input Current >50A), this series can be used for both low voltage primary side and medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation.

Their compact size and Rope-style Rogowski Coil Current Transformers offer "Easy Installation" with a large window size (55 ~ 105mm) and mechanical flexibility for tight spaces. It operates over a wide range of input voltages 10 ~ 500 VAC which allows universal compatibility. Also, with 2 channels relay outputs, it can be linked with sirens or lights for alarm messages. Variants are also available that support Modbus RTU, Modbus TCP or CANopen protocols for easy integration.

Features

True RMS Power Measurements
Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
Current Measurements Up to 1kA
Voltage Measurements Up to 500 V
Rogowski Coil Soft CT for Easy Installation
W Accuracy Better than 1% (PF=1; Input Current >50A)
Supports Modbus RTU Protocol
Supports 2 Power Relay Output (Form A)
Multiple Data Format

Specifications

AC Power Measurement
Wiring	3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops	Three-phase
Input Voltage	10 ~ 500 V
Input Current	CTØ55 mm (500 A), CTØ80 mm (1 kA)
Input Frequency	50/60 Hz
W Accuracy	Better than 1% (PF=1; Input Current >50 A)
Power Parameter Measurement	True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate	1 Second

CT
Includes CTs	3
Type	Rogowski
Max. Current	500 A / 1kA
Inside Diameter	55 mm / 80mm
Leading Cable	4 m

COM Ports
Ports	1 x RS-485
Baud Rate	9600, 19200 (default), 38400, 115200; DIP Switch Selectable
Data Format	N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2
Protocol	Modbus RTU, Modbus TCP or CANopen
Isolation	3000 VDC

Power
Input Range	+12 ~ 48 VDC
Consumption	2 W
Alarm Contact	Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC

Mechanical
Casing	Plastic
Dimensions (mm)	33 x 100 x 127 (W x L x H)
Installation	DIN-Rail Mounting

Environmental
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-25 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Technical

PM-3133-RCT Rogowski coil Power meter for 500A & 1kA Measurements datasheet

SOFTWARE:

Use supplied simple utility to record data from a single Meter at a time
Use PMC/PMD Series Power Meter Concentrator/Logging unit (record data from up to 24 Meters), with integrated web Server.
Record in any suitable package using Modbus protocol (Modbus TCP/RTU or CANopen - variant dependant)
Use nModbus functions, which are a C# v3.0 implementation of the modbus commands (DLL's etc)
