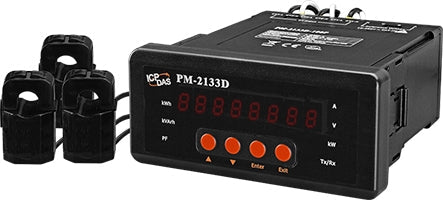

PM-2133D-160P 3-phase Compact Smart Energy Meter, LED Display, 100A CT's

£361.00; £361.00; (-0%)
Unit price: per

(Price excludes VAT)

Compact Three Phase Smart Power Meter, ModbusRTU protocol. 100A CT's. LED Display, Bi-directional Energy

Model: PM-2133D-160P

Quantity:

Subtotal: £361.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

PM-2133D-160P 3-phase Compact Smart Energy Meter, LED Display, 100A CT's

£361.00

Quantity:

PM-2133D-160P 3-phase Compact Smart Energy Meter, LED Display, 100A CT's

£361.00

Description
Features
Specifications
Technical
Applications

Description

The PM-2133D series is a range of powerful and advanced Smart Power Meters that give you access to real-time electric usage for three-phase power measurement.

With its high accuracy (<0.5%, PF=1 ), the PM-2133D series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 400 A). It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. This meter has LED display shows power.

Features

True RMS Power Measurements
Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
Current Measurements Up to 400 A with Different CT Ratio
Voltage Measurements Up to 500 V
Clip-on CT for Easy Installation
W Accuracy Better than 0.5% (PF=1)
8 - Digit LED Display
Supports Modbus RTU Protocol
Total Harmonic Distortion (THD)
Bi-directional Energy

Specifications

Model		PM-2133D	PM-2133D-MTCP
AC Power Measurement
Wiring		3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Input Voltage		10 ~ 500 V
Input Current		CTØ10 mm (0.05 A~60 A); CTØ16 mm (0.1 A~100 A); CTØ24 mm (0.15 A~200 A); CTØ36 mm (0.3 A~300 A); CTØ36 mm (0.3 A~400 A).
Input Frequency		50 Hz (Range 45 ~ 55 Hz)/60 Hz (Range 55 ~ 65 Hz)
W Accuracy		Better than 0.5% (PF=1)
Power Parameter Measurement		True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency (45 ~ 65 Hz)
Data Update Rate		1 Second
Display Type		LED display
Communication
RS-485	Protocol	Modbus-RTU	-
	Baud rate	9600,19200 (default), 38400, 115200	-
	Data format	N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2	-
	Isolation	3000 VDC	-
Ethernet	Protocol	-	Modbus TCP
Power
Input Range		+85 ~ +264 VAC (277 VAC available))
Power Consumption		6 W
Environment
Operating Temperature		-20 ~ +70 ËšC
Storage Temperature		-25 ~ +80 ËšC
Ambient Relative Humidity		10% ~ 90% RH, Non-condensing

Technical

PM-2133D 3-phase Smart Energy Meter with LED Display datasheet
