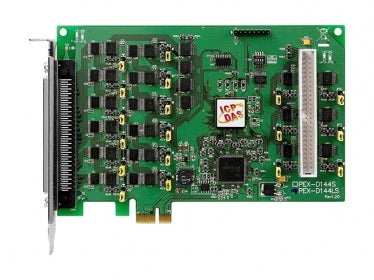

PEX-D144LS PCI Express, 144-ch Digital I/O Board

£212.00; £212.00; (-0%)
Unit price: per

(Price excludes VAT)

PCI Express, 144-ch Digital I/O Board (SCSI II Connector)

Model: PEX-D144LS

Quantity:

Subtotal: £212.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

PEX-D144LS PCI Express, 144-ch Digital I/O Board

£212.00

Quantity:

PEX-D144LS PCI Express, 144-ch Digital I/O Board

£212.00

Description
Features
Specifications
Technical
Applications

Description

The PEX-D144LS supports PCI Express bus. These cards provide 144 TTL digital I/O lines that are grouped into eighteen 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs Ports on power-up or after a reset.

The PEX-D144LS provides a high-density connector that reduces the amount of installation space required for the card in the computer. The PEX-D144LS cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The PEX-D144LS also adds pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Accessories

src=

Features

PCI Express x1 Interface
Supports Card ID (SMD Switch)
DI/O Response Time approximately 2 μs (500 kHz Max.)
DO Provides Higher Driving Capability
144 Buffered CMOS Digital Input/Output Lines
Twelve/Eighteen 8-bit Bi-directional I/O Ports
Four Interrupt Sources
Pull-high/Pull-low Jumpers for DI Channels

Specifications

Hardware
Card ID	Yes (4-bit)
Connector	Female SCSI II 100-pin x 1 50-pin box header x 1

Digital Input
Channels	144 (Bi-Direction)
Type	5 V/CMOS
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	250 kHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	144 (Bi-Direction)
Type	5 V/CMOS
Operation Mode	Static Update
Load Voltage	Logic 0: 0.1 V Max. Logic 1: 4.4 V Min.
Load Current	Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V
Response Speed	250 kHz (Typical)

PC Bus
Type	PCI Express x 1
Data Bus	8-bit

Power
Consumption	750 mA @ +3.3 V 0 mA @ +12 V

Mechanical
Dimensions (mm)	100 x 162 x 22 (W x L x D)

Environment
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Technical

PEX-D144LS PCI Express, 144-ch Digital I/O Board datasheet
