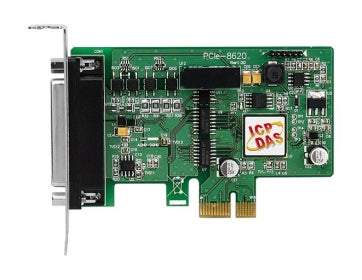

PCIe-8620 PCI Express, 200 kS/s, 8-ch, 16-bit Simultaneously Sampled AI Board with 4-ch Isolated DI
PCIe-8620 PCI Express, 200 kS/s, 8-ch, 16-bit Simultaneously Sampled AI Board with 4-ch Isolated DI

PCIe-8620 PCI Express, 200 kS/s, 8-ch, 16-bit Simultaneously Sampled AI Board with 4-ch Isolated DI

£297.00
£297.00
(-0%)
(Price excludes VAT)
PCI Express, 200 kS/s, 8-ch, 16-bit Simultaneously Sampled AI Board with 4-ch Isolated DIO. Includes one CA-PC25M D-Sub Connector and One Low-profile bracket
Model: PCIe-8620
Subtotal: £297.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

PCIe-8620 PCI Express, 200 kS/s, 8-ch, 16-bit Simultaneously Sampled AI Board with 4-ch Isolated DI

PCIe-8620 PCI Express, 200 kS/s, 8-ch, 16-bit Simultaneously Sampled AI Board with 4-ch Isolated DI

£297.00
PCIe-8620 PCI Express, 200 kS/s, 8-ch, 16-bit Simultaneously Sampled AI Board with 4-ch Isolated DI

PCIe-8620 PCI Express, 200 kS/s, 8-ch, 16-bit Simultaneously Sampled AI Board with 4-ch Isolated DI

£297.00
Description

The PCIe-8620 is a bus-type, isolated high-speed Analog Input board with isolated DI/O. The simultaneously sampled AD offers a mix of up to 8 single-ended 16-bit Analog Input channels with a 2 k Sample hardware FIFO. All channels feature a programmable input range of ±10 V or ±5 V with a sampling rate up to 200 kS/s per channel. The PCIe-8620 provides 4 isolated Digital Input channels and 4 isolated Digital Output channels. The isolation range of the board has been increased to 2500 VDC, making it one of the most cost-effective solutions when considering isolated AD with DI/O boards.

PCIe-8620 also includes a second-order anti-alias analog filter where the -3 dB frequency for the ±5 V input range is typically 15 kHz, and is typically 23 kHz for the ±10 V input range.

The PCIe-8620 is a low-profile PCI Express board that is suitable for computers with limited space, and is also suitable for standard-size computers since the board is shipped with both full-height and low-profile brackets.


      src=                        src=
Full-height Bracket           Low-profile Bracket


src=



Accessories

src=

Features
  • PCI Express x1 Interface, Full-profi le or Low-profi le
  • 4-channel Isolated Digital Input
  • 4-channel Isolated Digital Output
  • 8 Single-ended Analog Input channels
    • Synchronous Sample and Hold
    • Built-in MagicScan Controller
    • Analog Input Range: ±10 V, ±5 V
    • 16-bit, 200 kS/s Sampling Rate for each channel
    • Hardware FIFO for Analog Input with a total of 2048 Samples
Specifications
Hardware
Card ID Yes (4-bit)
Connector Female DB25 x 1
Analog Input
Channels 8 single-ended (Simultaneously)
Range Gain: 1, 2 Bipolar Range: ±10 V, ±5 V
Resolution 16-bit
Accuracy 0.05 % of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate 200 kS/s
Input Impedance 10,000 MΩ/4pF
Overvoltage Protection Continuous ±35 Vp-p
FIFO Size 2048 samples
Trigger Mode Software, Pacer
Isolation 2500 VDC (Bus-type)
Data Transfer Polling, Interrupt, DMA
Digital Input
Channels 4
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 1.0 MHz (Typical)
Trigger Mode Static Update
Data Transfer Polling
Isolation 2500 VDC
Digital Output
Channels 4
Type 5 V/CMOS
Operation Mode Static Update
Load Voltage Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min.
Load Current Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V
Response Speed 1.0 MHz (Typical)
Isolation 2500 VDC
DO Readback Yes
PC Bus
Type PCI Express x 1
Data Bus 32-bit
Power
Consumption 500 mA @ +3.3 V
200 mA @ +12 V
Mechanical
Dimensions (mm) Full-profile: 120 x 107 x 22
Low-profile: 80 x 107 x 22
(W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing



Technical

PCIe-8620 PCI Express Multifunction Data Acquisition card datasheet
