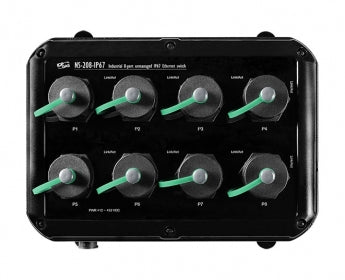

NS-208-IP67 Industrial 8-port unmanaged IP67 Ethernet switch

£225.00; £225.00; (-0%)
Unit price: per

(Price excludes VAT)

IP67 rated 8-port unmanaged Ethernet switch

Model: NS-208-IP67

Quantity:

Subtotal: £225.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

NS-208-IP67 Industrial 8-port unmanaged IP67 Ethernet switch

£225.00

Quantity:

NS-208-IP67 Industrial 8-port unmanaged IP67 Ethernet switch

£225.00

Description
Features
Specifications
Technical
Applications

Description

The NS-208-IP67 is designed for industrial applications in harsh environments. The rugged RJ-45 ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

Features

• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Each port supports both 10/100 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Rugged RJ-45 Connector for anti-vibration and shock
• IP67 grade protection approval

Specifications

LED Indicators
Status	PWR, Link/Act

Ethernet
Ports	8 x RJ-45, 10/100Base-TX
Standards	IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Processing Type	Store & forward; wire speed switching
MAC Addresses	1024
Memory Bandwidth	2 Gbps
Frame Buffer Memory	512 Kbit
Flow Control	IEEE 802.3x flow control, back pressure flow control
Isolation	1500 Vrms 1 minute

Power
Reverse Polarity Protection	Yes
Input Range	+12 ~ +53 VDC
Consumption	0.12 A @ 24 VDC

Mechanical
Casing	Plastic
Dimensions (mm)	DIN-rail mounting: 190 x 133 x 104 (W x L x H) Wall mounting: 190 x 155 x 104 (W x L x H)
Installation	DIN-rail mounting or wall mounting
Ingress Protection Rating	IP67 for Operating Temperature -10 °C ~ +60 °C IP66 for Operating Temperature -40 °C ~ +75 °C

Environmental
Operating Temperature	-10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66)
Storage Temperature	-10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66)
Humidity	100% RH for Operating Temperature -10 °C ~ +60 °C 10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C

Technical

NS-208-IP67 IP Rated 8-port unmanaged ethernet switch datasheet
