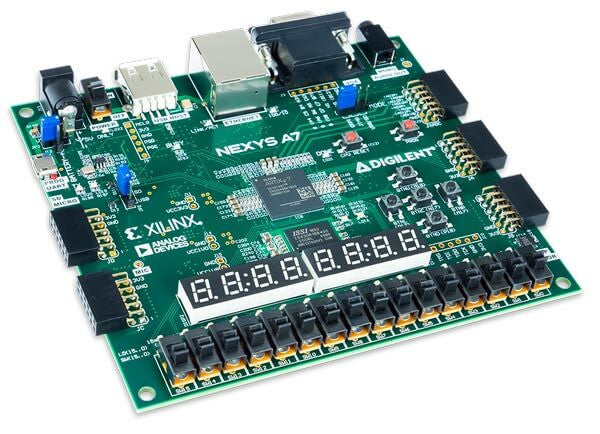

Nexys A7-100T AMD Artix™ 7 FPGA Trainer Board: Recommended for ECE Curriculum

£305.00; £305.00; (-0%)
Unit price: per

(Price excludes VAT)

The Nexys A7-100T (previously known as the Nexys 4 DDR) is an incredibly accessible, yet powerful, FPGA development board. Designed around the AMD Artix™ 7 FPGA family, the Nexys A7 is a ready-to-use digital circuit development platform that brings industry...

Model: 410-292

Quantity:

Subtotal: £305.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

Nexys A7-100T AMD Artix™ 7 FPGA Trainer Board: Recommended for ECE Curriculum

£305.00

Quantity:

Nexys A7-100T AMD Artix™ 7 FPGA Trainer Board: Recommended for ECE Curriculum

£305.00

Description
Features
Specifications
Technical
Applications

Description

The Nexys A7 (previously known as the Nexys 4 DDR) is an incredibly accessible, yet powerful, FPGA development board. Designed around the AMD Artix™ 7 FPGA family, the Nexys A7 is a ready-to-use digital circuit development platform that brings industry applications into the classroom environment. Note: The Nexys A7-50T variant was discontinued and is no longer available for purchase.

Students can start learning right away with the Nexys A7 thanks to its versatile selection of interfaces, such as 10/100 Ethernet, USB, UART, JTAG, and VGA. With a built-in temperature sensor, microphone, and accelerometer, students can work on a variety of projects without needing any additional hardware. Of course, 5 Pmod ports are available for additional customizability and applications.

The Nexys A7-100T features the Artix 7 XC7A100T-1CSG324C FPGA.

The Nexys A7 is supported by the AMD Vivado™ Design Suite, along with the free Standard edition, which helps keep costs down for students.

Guides and demos are available to help you get started quickly with the Nexys A7.

Educational Discounts are available.

Features

	Nexys A7-100T
FPGA part	XC7A100T-1CSG324C
Logic Slices	15,850
Block RAM (Kbits)	4,860
DDR2 Memory (MiB)	128
Clock Tiles (with PLL)	6
DSP Slices	240

FPGA Features
- Internal clock speeds exceeding 450MHz
- On-chip analog-to-digital converter (XADC)
- Programmable over JTAG and Flash
System Features
- USB-JTAG programming circuitry
- 16 MB QSPI Flash
  - Due to supply chain constraints, either the S25FL127S or S25FL128S Flash Memory may be loaded on your board. These parts are not functionally equivalent, but flash programming through Vivado and the QSPI boot mode are not affected. More information can be found in the Nexys A7 Reference Manual, available in the Support tab.
- Powered from USB or any 7V-15V source
- microSD card connector
System Connectivity
- 10/100 Mbps Ethernet
  - Note: AMD-provided software support for the Nexys A7's ethernet interface is limited in versions of Vivado 2019.2 and newer. For more information, see the Ethernet PHY section of the Nexys A7 reference manual, which can be found through the Support tab.
- USB-UART Bridge
Interaction and Sensory Devices
- 3-axis accelerometer
- PDM microphone
- PWM audio output
- Temperature Sensor
- 2 four-digit seven-segment displays
- USB HID for mice, keyboards, and memory sticks
- 16 Switches
- 16 LEDs
- 2 tri-color LEDs
- 12-bit VGA output
Expansion Connectors
- 4 Pmod connectors
- Pmod for XADC signals

Product Compliance:
- HTC: 8471500150
- ECCN: 5A992.c
Whats Included:
- Nexys A7 development board
- Digilent custom packaging with protective foam
- Micro USB cable
