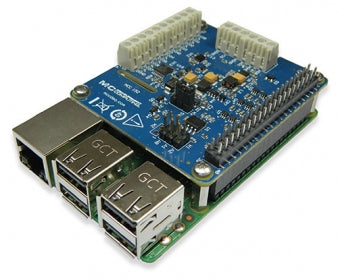

MCC-152 Voltage Output & DIO DAQ HAT for Raspberry Pi

£112.00; £112.00; (-0%)
Unit price: per

(Price excludes VAT)

Voltage Output & Digital I/O DAQ HAT for Raspberry Pi®. It has 8 Digital I/O channels and 2x 12-bit Voltage Outputs (0-5V range), which can be updated at up to 5ks/s.

Model: MCC-152

Quantity:

Subtotal: £112.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

MCC-152 Voltage Output & DIO DAQ HAT for Raspberry Pi

£112.00

Quantity:

MCC-152 Voltage Output & DIO DAQ HAT for Raspberry Pi

£112.00

Description
Features
Specifications
Technical
Applications

Description

The MCC 152 Voltage Output and DIO HAT provides two channels of analog voltage output and eight digital I/O for Raspberry Pi based systems. The 12-bit voltage outputs feature a 0-5 V range and can be updated at up to 5 kS/s. Up to eight MCC DAQ HAT devices can be stacked onto one Raspberry Pi.

All MCC DAQ HATs provide easy-to-use C/C++® and Python™ open-source libraries and examples allowing you to take reliable, quality measurements quickly.

NOTE: Raspberry Pi is not included with the MCC 152.

Features

Two 12-bit voltage outputs
Update at up to 5 kS/s Software paced
0-5 V output range
Eight Digital I/O (each bit configurable as input or output)
Screw terminal connections
Ability to stack up to eight MCC HATs onto a single Raspberry Pi for a maximum throughput of 320 kS/s

Included in the package

Getting Started Guide
Hardware required to connect to a Raspberry Pi (connector, standoffs, screws, nuts, and jumpers)

Specifications

ANALOG OUTPUT
CHANNELS	RESOLUTION	SPEED
2	12-bit	5 kS/s — SW paced
DIGITAL I/O
CHANNELS	COUNTER/TIMERS	ENCODER
8	—	—

SOFTWARE		POWER
OS SUPPORT	DRIVERS	POWER
Linux®, Raspbian®	DAQ HAT Library™	3.3 V provided by Rpi

Technical

MCC-152 Analog Output/DIO DAQ HAT Datasheet

MCC DAQ HAT White Paper
