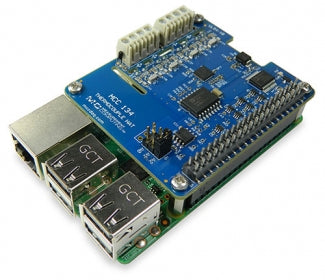

MCC-134 Thermocouple Measurement DAQ HAT for Raspberry Pi

The MCC 134 Thermocouple Measurement HAT provides four thermocouple inputs for adding temperature measurement capability to Raspberry Pi based systems. It features 24-bit resolution and provides professional-grade accuracy which is best in class.

The MCC 134 also offers open thermocouple detection so users can monitor for broken or disconnected thermocouples and each channel type is selectable on a per-channel basis. Up to eight MCC DAQ HAT devices can be stacked onto one Raspberry Pi. All MCC DAQ HATs provide easy-to-use C/C++® and Python™ open-source libraries and examples allowing you to take reliable, quality measurements quickly.

NOTE: Raspberry Pi is not included with the MCC 134.
Tech Tip: Learn more about measuring thermocouples with the MCC 134

• Four thermocouple inputs
• 1 S/s update interval
• 24-bit resolution
• Thermocouple types J, K, R, S, T, N, E, and B are supported
• Cold junction compensation
• Screw terminal connections
• Ability to stack up to eight MCC HATs onto a single Raspberry Pi

System Requirements:
Raspberry Pi A+, B+, 2, 3 or later

Included in the package:

• Getting started guide
• Hardware required to connect to a Raspberry Pi (connector, standoffs, screws, nuts, and jumpers)
