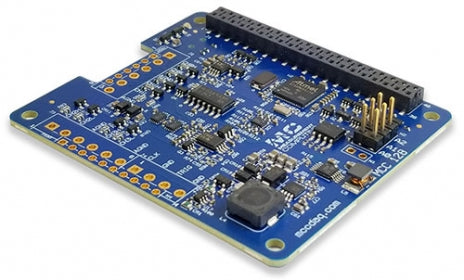

MCC-128-OEM Voltage Measurement 16-bit DAQ HAT for Raspberry Pi (No hdrs)
Voltage Measurement DAQ HAT for Raspberry Pi with 8 SE/4 DIFF analog inputs, 16-bit resolution, and up to 100 kS/s sample rate.OEM version removes header connectors.
FREE delivery to UK on orders over £500
Or phone us for our best price
0800 048 1057
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over £500
Free Returns
30 Day Money Back Guarantee
Description
xVoltage Measurement DAQ HAT for Raspberry Pi with 8 SE/4 DIFF analog inputs, 16-bit resolution, and up to 100 kS/s sample rate.OEM version removes header connectors.
Features
x- 8 SE/ 4 DIFF 16-bit voltage inputs
- Sample rate up to 100 kS/s
- Multiple input ranges ±10, ±5, ±2, ±1 V
- Onboard sample buffers allow high-speed acquisition
- External scan clock I/O
- External digital trigger input
- Screw terminal connections
- Ability to stack up to eight MCC HATs onto a single Raspberry Pi for a maximum throughput of 320 kS/s
Included in the package
- Getting Started Guide
- Hardware required to connect to a Raspberry Pi (connector, standoffs, screws, nuts, and jumpers)
System Requirements:
Raspberry Pi A+, B+, 2, 3, 4 or later
Specifications
x| ANALOG INPUT | ||||
| CHANNELS | RESOLUTION | MAX SAMPLE RATE | ||
| 8 SE/4 DIFF | 16-bit | 100 kS/s | ||
| SAMPLING | RANGES | ISOLATION | ||
| Multiplexed | ±10 V, ±5 V, ±2 V, ±1 V | — | ||
| ANALOG OUTPUT | ||||
| CHANNELS | RESOLUTION | SPEED | ||
| — | — | — | ||
| DIGITAL I/O | ||||
| CHANNELS | COUNTER/TIMERS | ENCODER | ||
| — | — | — | ||
| SOFTWARE | POWER | |
| OS SUPPORT | DRIVERS | POWER |
| Linux®, Raspbian® | DAQ HAT Library™ | Provided by Rpi |
