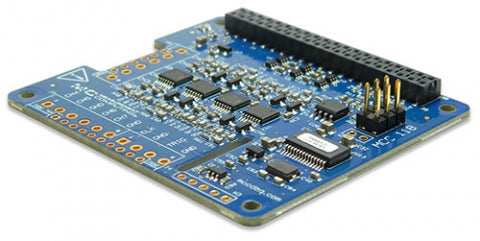

MCC-118-OEM Voltage Measurement DAQ HAT for Raspberry Pi (No hdrs)
- £85.00
- £85.00
- (-0%)
- Unit price
- per
Voltage measurement DAQ HAT for Raspberry Pi® with eight ±10 V inputs and sample rates up to 100 kS/s, optimized for single point and waveform measurements, with unpopulated header connectors instead of screw terminals
Subtotal:
£85.00
Free Shipping Free standard shipping on orders over £500
Free Returns 30 Day Money Back Guarantee
UK company
40 years experience
Talk to our expert engineers
The MCC 118-OEM provides eight single-ended (SE) analog inputs for voltage measurements with sample rates up to 100 kS/s for taking single point or waveform voltage measurements. Up to eight MCC HATs can be stacked onto one Raspberry Pi providing up to 64 channels of data and a maximum throughput of 320 kS/s.
The MCC 118-OEM is functionally equivalent to the standard version. The only difference is the screw terminal connectors have been removed. The OEM version is designed with unpopulated connectors for customers who want to add their own header type connectors. The board accepts 1x6 and 1x10 0.1” spacing header connectors.
NOTE: Raspberry Pi is not included with the MCC 118-OEM.
NOTE: Raspberry Pi is not included with the MCC 118-OEM.
- Eight 12-bit voltage inputs
- Sample rate up to 100 kS/s
- ±10 V input range
- Onboard sample buffers allow high-speed acquisition
- External scan clock I/O
- External digital trigger input
- Unpopulated signal connectors
- Ability to stack up to eight MCC HATs onto a single Raspberry Pi for a maximum throughput of 320 kS/s
Included in the package:
- Getting Started guide
- Hardware required to connect to a Raspberry Pi (connector, standoffs, screws, nuts, and jumpers)
System Requirements: Raspberry Pi A+, B+, 2, 3 or later
| ANALOG INPUT | ||||
| CHANNELS | RESOLUTION | MAX SAMPLE RATE | ||
| 8 SE | 12-bit | 100 kS/s | ||
| SAMPLING | RANGES | ISOLATION | ||
| Multiplexed | ±10 V | — | ||
| ANALOG OUTPUT | ||||
| CHANNELS | RESOLUTION | SPEED | ||
| — | — | — | ||
| DIGITAL I/O | ||||
| CHANNELS | COUNTER/TIMERS | ENCODER | ||
| — | — | — | ||
| SOFTWARE | POWER | |
| OS SUPPORT | DRIVERS | POWER |
| Linux®, Raspbian® | DAQ HAT Library™ | 3.3 V provided by Rpi |
