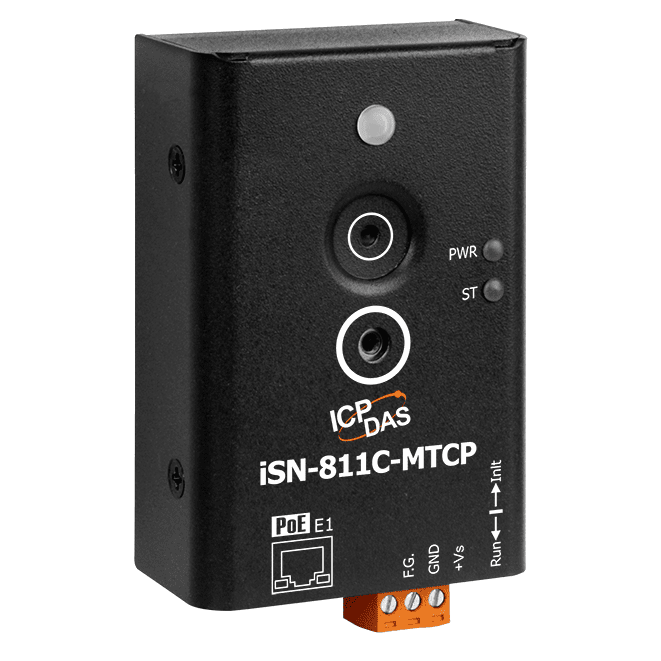

iSN-811C-MTCP IR temperature sensing module with camera, PoE Ethernet port

£730.00; £730.00; (-0%)
Unit price: per

(Price excludes VAT)

Modbus TCP; IR temperature sensing module with camera; 64 Pixels

Model: iSN-812-MTCP

Quantity:

Subtotal: £730.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

iSN-811C-MTCP IR temperature sensing module with camera, PoE Ethernet port

£730.00

Quantity:

iSN-811C-MTCP IR temperature sensing module with camera, PoE Ethernet port

£730.00

Description
Features
Specifications
Technical
Applications

Description

The iSN-81x-MRTU and iSN-81x-MTCP series are temperature measurement modules developed for non-contact temperature measurement.

With a diverse range of temperature pixels and temperature threshold detection functions, they can meet various temperature measurement needs. The iSN-811C-MTCP is equipped with a camera that provides images of the measured objects. Through the synthesis of infrared images and images of the measured objects, management personnel can intuitively inspect and analyze the temperature distribution of the measured objects, enabling accurate judgments and decisions. The iSN-811C-MTCP supports Modbus TCP, RESTful, and MQTT communication protocols. The Modbus TCP communication protocol allows for easy integration into SCADA systems, providing real-time temperature measurements. It also supports sending measurement data to a remote database server using the RESTful method. When operating as an MQTT client, iSN-811C-MTCP sends measurement data to a Broker, allowing SCADA systems, management platforms, and IoT systems to easily subscribe to topics and access iSN-811C-MTCP measurement data.

iSN-811C-MTCP is your reliable partner for equipment monitoring, data analysis, and anomaly detection in an industrial environment. Management personnel can assess whether the equipment being monitored by iSN-811C-MTCP is experiencing anomalies through measurement data. This helps with early warning and rapid response, reducing production losses caused by sudden anomalies. The long-term storage of historical data can also be used for automated decision-making or artificial intelligence training to determine whether components of monitoring equipment need replacement, achieving the goal of predictive maintenance.

Whether you require real-time monitoring or long-term data analysis, iSN-811C-MTCP can meet your needs.

Web Interface

HeatMap: Integrated thermal imaging and field image	Chart: Monitor and record temperature trends
	1

Features

on-contact temperature measurement
Integrated thermal imaging and field image
Support Modbus TCP, RESTful and MQTT protocols
Web-based configuration and monitoring interface
Temperature threshold detection function

Specifications

Camera
Image Sensor	CMOS
Max. Resolution	QVGA (320x240)

LED Indicators
Status	1xPWR; 1xST

Temperature Measurement
Range	-20°C~250°C
Resolution	0.1°C
Accuracy	±5°C Max.
IR Sensor Pixel	64 (8 x 8)
IR Sensor FOV	X: 60° / D : S =1 : 1.15 Y: 60° / D : S =1 : 1.15
Distance	≦1m

Ethernet
Ports	1 x RJ-45, 10/100Base-T(X)
PoE	Yes
Protocol	Modbus TCP server/MQTT client/RESTful client

Power
Input Range	+10~+30 VDC
Consumption	1.5W
Powered from PoE	Yes, IEEE 802.3af, Class1

Mechanical
Dimensions (mm)	52 x 86 x 34 (W x H x D)
Installation	Din-rail or magnetic(Optional), universal joint(Optional)

Environment
Operating Temperature	-10°C~70°C
Storage Temperature	-20°C~80°C
Humidity	10% ~ 95% RH, Non-condensing

Technical

iSN-811C-MTCP IR Temperature sensor datasheet

Applications

Temperature monitoring
Measuring the temperature of moving objects
Measurement of the temperature distribution on the surface of an object
Suitable for hazardous environments
