Instant28 Data Logging System, 20x AI/TC Input, 4 DigIn, 4 RelayOp

This complete Data Logging Starter system comprises everything you need to monitor up to 20 Analog Voltage, 4-20mA or Thermocouple inputs, along with 4 Digital Inputs. There are also 4 Relay outputs that can be used for alarms etc.
The control unit connects to the host computer via a USB connection, with our Orchestrator SCADA software providing configuration, monitoring and data recording.

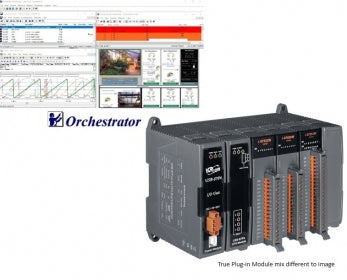

The system comprises:

Orchestrator32 SCADA Software (upto 32 I/O tags)
USB-87P4  USB backplane unit
I-87019ZW x2  10 channel plug-in Analog Input unit
I-87063W  Plug in Digital I/O unit (4 DI, 4RO)
DIN-KA52F 24V Power supply with mains lead

For more information on each item, please refer to product pages linked above.

The backplane unit has a spare plug-in slot for future expansion, while a wide range of other plug-in cards are available (along with optional backplane units with different number of I/O slots). Should you need something different to the above, please don't hesistate to contact us.
