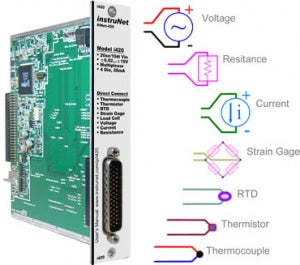

iNet-420 InstruNet Voltage Card, 10 AI, 4 DIO channels

£420.00; £420.00; (-0%)
Unit price: per

(Price excludes VAT)

Plug-in multiplexer card for InstruNet-400 system which provides additional Analogue Input Channels (10 differential or 20 Single-ended) plus 4 Universal Digital I/O channels.

Model: iNet-420

Quantity:

Subtotal: £420.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

iNet-420 InstruNet Voltage Card, 10 AI, 4 DIO channels

£420.00

Quantity:

iNet-420 InstruNet Voltage Card, 10 AI, 4 DIO channels

£420.00

Description
Features
Specifications
Technical
Applications

Description

Plug-in multiplexer card for InstruNet-400 system which provides additional Analogue Input Channels (10 differential or 20 Single-ended) plus 4 Universal Digital I/O channels.

Software support is offered within the InstruNet World software, while drivers are available for our Orchestrator SCADA software, along with NI Labview plus DasyLab. An enhanced version of InstruNet World (IW+) can be provided along with the necessary files/demo programs to produce Interfaces in C or VB.

NOTE: The iNet-420 card does not contain its own ADC, so requires an iNet-430 card to be also fitted into the iNet-400 backplane.

Features

The i420 card plugs into a 4 to 16 slot instruNet i4xx Card Cage, which in turn attaches to a Windows computer
20se/10di Voltage Input Channels
4x Universal Digital I/O (20mA sink, -10V..30V)
Connect Directly To Sensors: Voltage, Thermocouple, Thermistor, RTD, Load Cell, Strain Gauge, Potentiometer, Current, Resistance
Additional i43x A/D module required to measure voltages

Specifications

Technical

InstruNet 400 Brochure

Applications
