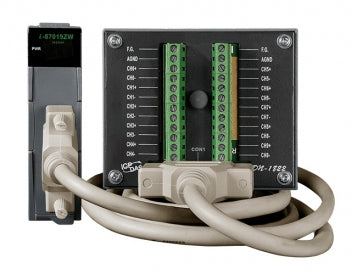

I-87019ZW/S2 10-channel Universal Analog Input Module (+ DN-1822 DIN Terminal unit)

£375.00; £375.00; (-0%)
Unit price: per

(Price excludes VAT)

The I-87019ZW provides 10 differential Analog Input channels, each individually configurable for measuring Voltage, Current (jumper selectable) or Thermocouples. This unit also provides 240Vrms Over Voltage Protection and Open Thermocouple Detection. Includes DN-1822 DIN Rail Module for the screw terminal...

Model: I-87019ZW/S2

Quantity:

Subtotal: £375.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

I-87019ZW/S2 10-channel Universal Analog Input Module (+ DN-1822 DIN Terminal unit)

£375.00

Quantity:

I-87019ZW/S2 10-channel Universal Analog Input Module (+ DN-1822 DIN Terminal unit)

£375.00

Description
Features
Specifications
Technical
Applications

Description

The I-87019ZW is a 10-channel universal analog input module with an RS-485 interface that is a specially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field.

Apart from the thermocouple inputs, the I-87019ZW also supports voltage and current inputs. The voltage input range can be form +/-15 mV to +/-10 V, and the current input range can be either 4 ~ 20 mA, 0 ~ 20 mA, or +/- 20 mA. Up to 10 analog inputs of different types can be connected to a single module. Overvoltage protection of up to 240 Vrms is provided. The module also features per-channel open wire detection for thermocouple and 4 ~ 20 mA inputs.

Features

10-channel Analog Input
Individual Channel Configuration
Open Thermocouple Detection
Temperature Output Consistency
Stable Temperature Output in the Field
240 Vrms Overvoltage Protection
Jumper Selectable Voltage or Current Input
Dual Watchdog

Specifications

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power and Communication 16 x I/O

Analog Input
Channels	10 Differential
Type	Voltageã€Currentã€Thermocouple
Sensor Type	(J, K, T, E, R, S, B, N, C, L, M, LDIN43710
Range	+/-15 mV, +/-50 mV, +/-100 mV, +/-150 mV +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V,+/-10 V -20 mA ~ +20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) Thermocouple Type: (J, K, T, E. R. S, B, N, C, L, M, and LDIN43710)
Resolution	16-bit
Accuracy	±0.1% of FSR
Sampling Rate	10 Hz (Total)
Input Impedance	Voltage: >400 kΩ Current: 125 Ω
Common Mode Rejection	86 dB
Normal Mode Rejection	100 dB
Overvoltage Protection	240 Vrms
Individual Channel Configuration	Yes
Open Wire Detection	Yes
Zero Drift	±20 μV/°C
Span Drift	±25 ppm/°C

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1)
Protocol	DCON

Power
Consumption	1.4 W Max.

Mechanical
Dimensions (mm)	30 x 86 x 114 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing

Technical

I-87019ZW series Analog input modules datasheet

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
