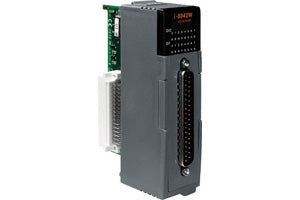

I-8042W Digital Input/Output Module - 32 channel Isolated

£127.00; £127.00; (-0%)
Unit price: per

(Price excludes VAT)

Parallel Bus Plug-in Digital I/O Data Acquisition Module, providing 16 Isolated Digital Inputs and 16 Isolated Digital Outputs.

Model: I-8042W

Quantity:

Subtotal: £127.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

I-8042W Digital Input/Output Module - 32 channel Isolated

£127.00

Quantity:

I-8042W Digital Input/Output Module - 32 channel Isolated

£127.00

Description
Features
Specifications
Technical
Applications

Description

The I-8042W is a plug-in parallel bus Isolated Digital I/O unit, providing 16 Inputs and 16 Outputs for use with any ICPCON Programmable Automation Controller unit (PAC).

Features

Specifications

Digital Input
Input Channels	16 (Sink/ source)
Input Type	One common for all Inputs
On Voltage Level	+10V ~ 30V
Off Voltage Level	+4V max
Input Impedance	3K Ohms, 0.33W
Intra-module Isolation, Field to Logic	3750Vrms
4KV ESD Protection	Contact for each channel
Digital Onput
Output Channels	16 (Sink)
Output Type	Open-collector
Max Load Current	100 mA/ Channel
Load Voltage	5Vdc to 30Vdc
Intra-module Isolation, Field to Logic	3750Vrms
4KV ESD Protection	Contact for each channel
LED Display
1 LED as Power Indicator
32 LEDs as Digital Input and Output Indicators
Power
Power Consumption	0.3A @ 5V = 1.5W ,+/- 5% For Hardware
Environment
Operating Temperature	-25 to 75 °C
Storage Temperature	-30 to 75 °C
Humidity	5 to 95%, Non-condensing
Dimensions
30mm x 85mm x 114mm (W x L x H)
