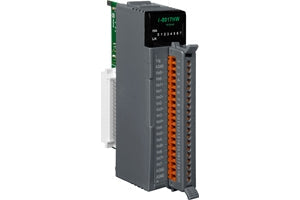

I-8017HW Analog Input Module : 8-channel , 14-bit

£237.00; £237.00; (-0%)
Unit price: per

(Price excludes VAT)

Analog Input module, 8 channel, 14-bit for IP-8000 backplane systems

Model: I-8017HW

Quantity:

Subtotal: £237.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

I-8017HW Analog Input Module : 8-channel , 14-bit

£237.00

Quantity:

I-8017HW Analog Input Module : 8-channel , 14-bit

£237.00

Description
Features
Specifications
Technical
Applications

Description

The I-8017HW is a high performance Analog Input Module.

Up to 16 single-ended or 8 differential input channels are provided with 14-bit of resolution and 90 kS/s sampling rate. Each channel can be conï¬gured to an individual input range of ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC or ±20 mA. The modules also provide ±4 kV ESD protection as well as 2500 VDCintra-module isolation. All the three modules can be used to measure voltage and current source. On the I-8017HW, an external 125 Ω resistor is needed to measure current source.

Features

8 Diï¬€erential/16 Single-ended Analog Inputs
Voltage or Current Input
14-bit 100 kHz AD Converter
Internal Trigger
Individual Channel Conï¬guration

Specifications

Isolation
Intra-module Isolation	2500 VDC

EMS Protection
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Terminal

LED Indicators
Status	1 x Power and Communication 16 x I/O

Analog Input
Channels	16-ch Single-ended/8-ch Differential
Range	Voltage: ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC Current: ±20 mA, Requires Optional External 125 Ω Resistor
Resolution	14-bit
Accuracy	±0.1% of FSR
Sampling Rate	Single Channel Polling Mode: 90 kS/s Single Channel Interrupt Mode: 50 kS/s 8 channel Scan Mode: 16 kS/s
Bandwidth	100 kHz
Input Impedance	20 K, 200 K, 20 M (Jumper Selectable)
Individual Channel Configuration	Yes
Zero Drift	±0.1 uV/°C
Span Drift	±10 ppm/°C

Power
Consumption	2 W Max.

Mechanical
Dimensions (mm)	30 x 102 x 115 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 90% RH, Non-condensing

Technical

I-8017HW Datasheet

Applications

High speed data acquisition system
Process monitor and control
Vibration analysis
Digital pattern generator from digital I/O port
