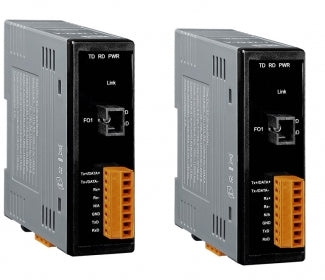

I-2542 RS-232/422/485 to Single-Mode Fibre Optic Converter (Pair)

£421.00; £421.00; (-0%)
Unit price: per

(Price excludes VAT)

RS-232/422/485 to Single-Mode 15 Km, SC Fiber optic converter, TX 1550 nm, RX 1310 nm Product contains I-2542-A & I-2542-B

Model: I-2542

Quantity:

Subtotal: £421.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

I-2542 RS-232/422/485 to Single-Mode Fibre Optic Converter (Pair)

£421.00

Quantity:

I-2542 RS-232/422/485 to Single-Mode Fibre Optic Converter (Pair)

£421.00

Description
Features
Specifications
Technical
Applications

Description

The I-2542 series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.

This products consists of I-2542-A and I-2542-B as a pair.

Features

Automatic RS-485 Direction Control
Avoids lightning strikes and EMI/RFI interference
ESD Protection for the RS-232/422/485 Data Line

Specifications

EMS Protection
ESD (IEC 61000-4-2)	Yes

LED Indicators
Status	1 x Power and Communication

COM Ports
Ports	1 x RS-232/422/485
Baud Rate	1200 ~ 115200 bps

Fiber
Ports	Single-Mode; SC connector x 1
Fiber Cable	8.3/125, 8.7/125, 9/125 or 10/125 μm
Transmission Distance (LoS)	15 km
Wavelength	TX: 1550, RX: 1310 nm

Power
Input Range	+10 VDC ~ +30 VDC (Non-isolated)
Consumption	2 W

Mechanical
Casing	Plastic
Dimensions (mm)	33 x 89 x 107 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +75 °C
Humidity	10 ~ 95% RH, Non-condensing

Technical

I-2542 Serial to Single-mode Fibre Datasheet

Applications
