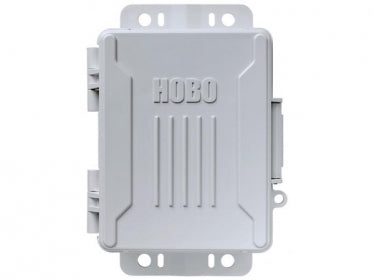

H21-USB Hobo Micro Weather Station

£374.00; £374.00; (-0%)
Unit price: per

(Price excludes VAT)

The HOBO Micro Station is designed for monitoring micro-climates for crop or alternative energy installations. The Micro Station has four sensor inputs which accept any combination of the available plug-in Smart Sensors.

Model: H21-USB

Quantity:

Subtotal: £374.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

H21-USB Hobo Micro Weather Station

£374.00

Quantity:

H21-USB Hobo Micro Weather Station

£374.00

Description
Features
Specifications
Technical
Applications

Description

Rugged and compact, the redesigned HOBO USB Micro Station is a weatherproof data logger for multi-channel monitoring of microclimates. This battery-powered station accepts up to five plug-and-play Smart Sensors and has a hinged door to make sensor installation simple and quick. The Micro Station is equipped with a built-in USB port for fast, efficient data readout to a computer, and an integrated mounting tabs for easy installation.
H21-USB App2 H21-USB App1

NOTE: Extra Smart Sensor ports can be added by using the S-ADAPT-6 Consolidator Box.

Outdoor Measurements

Temperature 2m cable 6m cable 17m cable	Relative Humidity 2m cable 8m cable	Wind Speed & Direction NOTE: Wind Speed & Wind Direction also available as seperate sensors.
Pulse Input (Energy/Flow Meters)	Rainfall	Barometric Pressure 10cm Cable (for inside logger housing) 50cm cable (for outside logger housing)
Wind Speed Wind Direction	Solar Radiation Photosynthetic Light (PAR)	Soil Moisture 10HS Probe

Please contact us for information and pricing on the sensors, mounting masts etc.

Features

Compact size for easy deployment
Weatherproof IP66 enclosure for harsh environments
Direct USB offload--no need for an adapter cable
Includes five smart sensor inputs
Hinged door and integrated mounting tabs
Runs for up to a year on four standard AA batteries
Compatible with HOBOware (Free download) and HOBOware Pro software for logger setup, graphing and analysis

Specifications

Operating Range	-20° to 50°C (-4° to 122°F) with alkaline batteries -40 to 70°C (-40 to 158°F) with lithium batteries
Smart Sensor Connectors	5
Smart Sensor Network Cable Length	100 m (328 ft) maximum
Logging Interval	1 second to 18 hours
Start Modes	Immediate, at interval, push button, or delayed start
Memory Modes	Stop when full or wrap when full
Memory	512 KB nonvolatile flash data storage
Time Accuracy	0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)
Battery Type	Four AA 1.5 V alkaline batteries for operating conditions of -20° to 50°C (-4° to 122°F); four AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F)
Battery Life	1 year, typical use (up to five sensors with 1 minute or greater logging interval)
Communication Type	USB 2.0 interface
Full Memory Download Time	4 minutes
Enclosure Access	Hinged door secured by one latch with eyelet for use with user-supplied padlock
Materials	Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins; Gaskets: Silicone rubber; Cable channel: EPDM rubber
Dimensions	17.04 x 11.94 x 4.47 cm (6.71 x 4.70 x 1.76 in.) see diagrams in manual Padlock hole diameter: 0.58 cm (0.23 in.)
Weight	414g (14.6 oz.)
Environmental Rating	Weatherproof enclosure, NEMA 4X and IP66
