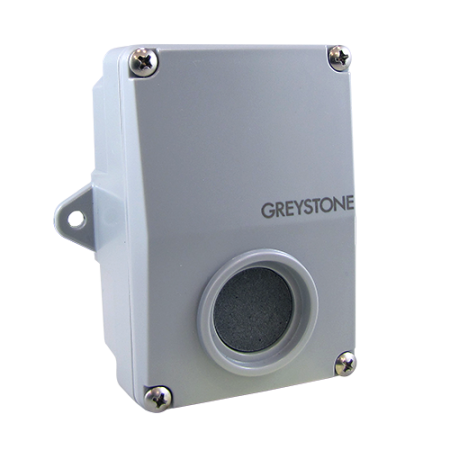

GS-CMD1 Carbon Monoxide Sensor (wall mounted)

The CMD series carbon monoxide detector uses an electrochemical sensor to monitor the carbon monoxide level and outputs a factory calibrated 4-20 mA or 0-10 Vdc (Please specify on any order), or optional Modbus signal. Optionally, the device may be  configured with an alarm relay. For the options, please also see recommended products section below.

• 0-300 ppm CO range
• Electrochemical sensing element
• 4-20 mA or 0-10Vdc output, 2 wire (looped powered) or 3 wire
• Powered by either AC or DC source
• Optional on board relay
• Easy to calibrate in the field

• MEASUREMENT Electrochemical
• SAMPLE METHOD Diffusion
• MEASUREMENT RANGE
  Analog: 0-300 ppm
  Modbus: 0-500 ppm
• ACCURACY ±5 ppm or ±5% of reading (whichever is greater)
  0 to 50°C (32 to 122°F), 15 to 95 %RH
• AGENCY APPROVALS Sensor is UL Recognized for ASNI/UL-2034 and UL-2075, E240671
• OPERATING CONDITIONS -20 to 50°C (-4 to 122°F), 15 to 90 %RH, 0.9-1.1 atm
• STABILITY <5% signal loss/year
• RESPONSE TIME <35 seconds for 90% step change
• LIFE EXPECTANCY 7 years in air
• TYPICAL COVERAGE AREA 700m2 (7500ft2 ) or 15m (50ft) radius
• WIRING CONNECTIONS Screw terminal block (14 to 22 AWG)
• ENCLOSURE ABS, UL94-V, IP65 (NEMA 4X)
• ENCLOSURE DIMENSIONS 71mm W x 104mm H x 48mm D (2.8” x 4.1” x 1.9”)
• COUNTRY OF ORIGIN Canada
• NON-RELAY MODEL
  Power Supply: 24 Vdc ±20% or 24 Vac ± 10% (non-isolated half-wave rectified)
  Consumption: 20 mA max
  Output Signal: 4-20 mA loop-powered or 0-10 Vdc (factory calibrated)
  Output Drive Capability @ 24 Vdc: Current - 550Ω max, Voltage - 10,000Ω min
• RELAY MODEL
  Power Supply: 24 Vdc ±20% or 24 Vdc ±10% (non-isolated half-wave rectified)
  Consumption: 40 mA max
  Output Signal: 4-20 mA sourcing or 0-10 Vdc (factory calibrated)
  Output Drive Capability @ 24 Vdc:, Current - 550Ω max, Voltage - 10,000Ω min
• Relay Contacts: Form C contacts (N.O. and N.C.), 5 Amps @ 250 Vac, 5 Amps @ 30 Vdc
• Relay Trip Point: 25, 60 and 150 ppm - jumper selectable
• Relay Hysteresis: 3% or 9 ppm

GS-CMD1 Carbon Monoxide sensor datasheet
