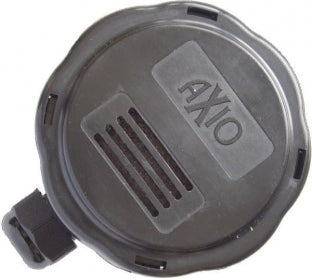

GS-CM-VR Carbon Monoxide Sensor - Voltage+ Relay Output

• Monitors CO levels over a range of 0-300ppm
• 0-5, 2-10 or 0-10Vdc selectable voltage output
• Electrochemical sensing element
• 24Vac/dc powered
• Relay option with jumper set alarm levels
• 4 digit LCD Display (-L version)
• Easy maintenance and 3 year exchange option
• Open collector Fault output
• Easy installation with plug-in connections
• Sensor is UL recognised component UL2034,UL2075,E240671
• 3 Year Warranty

• Sensor type Electrochemical 3-electrode
• Output 0-5Vdc, 2-10Vdc or 0-10Vdc at 5mA maximum load
• Relay  SPCO relay, 230Vac 5A(Resistive)
• Relay trip points  25, 60, 150 ppm
• Fault Output  Open collector, 30Vdc at 100mA maximum
• -L Model (option) LCD: 4 Digit 9mm high character, backlit LCD of reading in ppm.
• Output range 0-300ppm CO
• Output accuracy +/- 5ppm or +/- 5% Reading (whichever is greater) between 0 & 50'C
• Output stability <5% signal drift per year
• Typical coverage area 700m2 or 15m radius
• Settling time 3 minutes after power up
• Life expectancy >3 years dependant on environment
• Power supply 24Vac ±10%, 100mA maximum or 24Vdc ±10%, 60mA maximum
• Ambient temperature and humidity range 0-50°C, 15-90% RH non-condensing
• Housing Flame retardant ABS, IP65, White (Black is an option)
• Dimensions & Weight: 92mm diameter x 52mm, 170g
• Terminals: Rising clamp for 0.5 - 1.5mm²
• Country of Origin: UK
