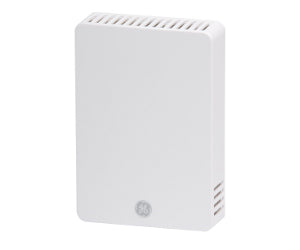

GS-CD-T51 Carbon Dioxide (CO2) Sensor
GS-CD-T51 Carbon Dioxide (CO2) Sensor

GS-CD-T51 Carbon Dioxide (CO2) Sensor

CO2 Sensor / Transmitter with scaled DC Voltage or 4-20mA output and a range of 0-2000ppm.
Contact for Price

FREE delivery to UK on orders over £500

Or phone us for our best price

0800 048 1057

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
Description
Description
x

CO2 Sensor / Transmitter with scaled DC Voltage or 4-20mA output and a range of 0-2000ppm.



Features
Features
x
  • 0-10Vdc or 4-20mA output for Co2
  • Thermistor or Analogue output for Temperature
  • Mounting plate with 2 piece terminal blocks
  • 15 year calibration interval
  • 5 Coloured LED on T51-EL version
  • Wall mounting
  • Monitors CO2 over range 0 to 2,000 ppm
  • 24Vac/dc Power supply
  • Digital UIP interface (RS-232 TTL Level)
Specifications
Specifications
x

Sensing Method

• Non-dispersive infrared (NDIR) absorption

• Gold-plated optics

• Patented ABC Logic self calibration algorithm

CO2 Measurement Range

0 to 2000 ppm (0-5000ppm with UIP

CO2 Accuracy

+/- 50ppm (400-1250ppm)
Hysteresis
100ppm


Stability

 Self Calibrating <2% FS over life of sensor (typical 10yrs)
Temperature Dependance
0.2% FS per ’C

Output

-V         1 x 0-10Vdc output (0-5V link selectable) 1 x Thermistor temperature output
-I          1 x 4-20mA output 1 x Thermistor temperature output
-L          2 x Analogue (link selectable 0-5/10V or 4-20mA)
-LT        Thermistor output of temperature (specify thermistor)
LED Displays: -L Version only

<800 Blue
800-1200 Green
1200-1500 Yellow
1500-2000 Red
>2000 Two Red


Power Supply Requirements

18-30 VAC RMS, 50/60 Hz, or 18 to 42 VDC,

polarity protected

Power Consumption

Typical 0.7 W at nominal voltage of 24V AC RMS

Flammability Classification

UL94 5VA (Flame Retardant ABS)
Case Dimensions
82 x 86 x 28 mm approx


Operating Conditions

0°C to 50°C

0 to 95% RH, non-condensing

Storage Conditions

-40°C to 70°C

Certification

CE EMC, RoHS, REACH and WEEE compliant



Technical
Technical
x

GS-CD-T51 Carbon Dioxide (CO2) Transmitter datasheet

Applications
Applications
x
  • Air Quality management
  • Ventilation  study
  • Energy efficiency
  • Building Management
  • Environmental Control
  • HVAC applications
