Eclypse Z7: Zynq-7000 SoC Development Board for Modular Instrumentation

£455.00

Quantity:

Eclypse Z7: Zynq-7000 SoC Development Board for Modular Instrumentation

£455.00

Description
Features
Specifications
Technical
Applications

Description

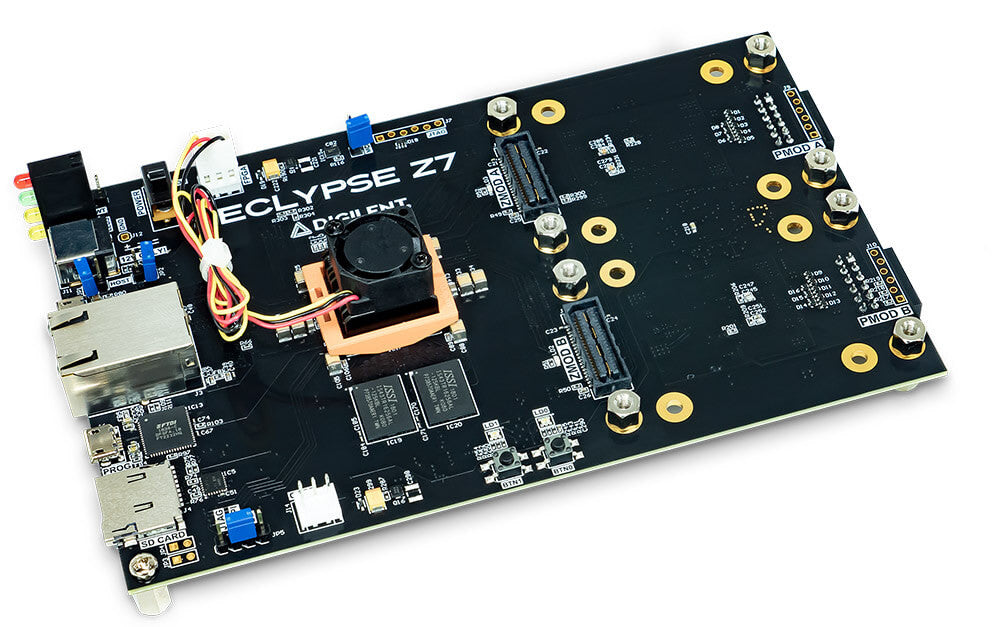

The Eclypse Z7 is specifically designed to enable the rapid prototyping and development of embedded measurement systems. Featuring high-speed Zmod ports for modular expansion and a AMD Zynq®-7020 SoC, the Eclypse Z7 is fast and flexible, reducing the time it takes for engineers and researchers to develop innovative and powerful new high-speed instrumentation, control, and measurement systems for edge-computing, medical, and communications applications.

Zmod Expansion

Zmod is Digilent’s expansion solution using the open-source SYZYGY standard from Opal Kelly. Faster than the Pmod Standard and more compact and cost-effective than FMC, Zmods improve the customizability options for high-speed I/O. Plug in your application specific Zmods and get up and running in hours or days, instead of weeks or months. Take a look at the Features tab for a list of compatible Zmods.

Educational Discount is available

Features

Features
Zynq-7000 APSoC	Chip number: XC7Z020-1CLG484C 667 MHz dual-core Cortex-A9 processor DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C Programmable from JTAG, Quad-SPI flash, and microSD card Programmable logic equivalent to Artix-7 FPGA
Memory	1 GiB DDR3L with 32-bit bus @ 1066 MT/s 16 MB Quad-SPI Flash with a factory-programmed 48-bit globally unique EUI-48/64™ compatible identifier microSD card slot
Power	Powered from external 12V 5A supply Platform MCU for configuration of adjustable power supplies and temperature management
USB and Ethernet	Gigabit Ethernet PHY USB-JTAG programming circuitry USB-UART bridge USB micro AB port with USB 2.0 PHY with Host/Device/OTG capabilities
Zmod Ports	2 ports following the SYZYGY Standard interface specification Compatible with a variety of SYZYGY pods, allowing for a wide variety of applications Dedicated differential clocks for input and output 8 differential I/Os per port 16 single-ended I/Os per port DNA interfaces connected to Platform MCU allowing for various auto-negotiated power supply configurations Supports the Digilent Zmod AWG 1411, Scope 1410, Scope 1210, and Scope 1010, Zmod Digitizer, Zmod SDR
Pmod Ports	2 twelve-pin ports for a total of 16 FPGA-connected I/Os High speed voltage translation and protection circuitry
User GPIO	2 push-buttons 2 RGB LEDs

Whats Included:

Eclypse Z7 Development Board
FPGA fan
USB A to Micro B programming cable
USB A to Micro A cable
12V 5A power supply
Digilent custom packaging
Eight 5 mm standoffs
- Additional contents depend on the option choice:
  - 2-channel Oscilloscope Bundle: Adding one Zmod Scope 1410-105 and one Zmod AWG 1411
  - 4-channel Oscilloscope Bundle: Adding two Zmod Scopes (Zmod Scope 1410-105)
  - SDR Bundle: (Add Zmod SDR 1450-122 and Zmod AWG 1411)
  - Digitizer Bundle: (Add two Zmod Digitizer 1430-125s)
