ECAT-2610 EtherCAT Slave to Modbus RTU Master Gateway

£311.00; £311.00; (-0%)
Unit price: per

(Price excludes VAT)

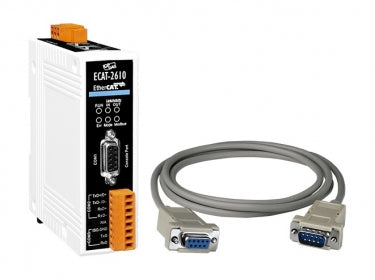

EtherCAT Slave to Modbus RTU Master Gateway Includes CA-0915 (DB9 Male to DB9 Female Cable, 1.5 M)

Model: ECAT-2610

Quantity:

Subtotal: £311.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

ECAT-2610 EtherCAT Slave to Modbus RTU Master Gateway

£311.00

Quantity:

ECAT-2610 EtherCAT Slave to Modbus RTU Master Gateway

£311.00

Description
Features
Specifications
Technical
Applications

Description

Integrate your serial RS-232/422/485 based industrial devices and equipment to an EtherCAT control system without the need for any changes to the device. Just connect, configure and it's finished.

The ECAT-2610 Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to EtherCAT. The gateway performs an intelligent protocol conversion and presents the serial data to the Master PLC/Controller as easily processed I/O data.

Features

Powerful MCU handles efficient network traffic
2 x RJ-45 EtherCAT connectors
Integrate RS-232/422/485 serial device to EtherCAT
Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
Requires no hardware or software changes to be made to the connected device
Compatible with all PLCs with EtherCAT support
Performs complete serial protocol conversion, no PLC function blocks required
Supports maximum 256 WORD Input and 256 WORD Output Data
Supports serial port interface
- Supports Modbus RTU (Master) protocol
- Supports RS-232/422/485 Port
- Supports maximum Baud Rate 115200 bps

Specifications

COM Ports
Ports	1 x RS-232/422/485
Protocol	Modbus RTU (Master)

EtherCAT
Ports	RJ-45 x 2 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e)
Cycle Time	10 ms
Distributed Clocks	N/A

Power
Reverse Polarity Protection	Yes
Input Range	+12 VDC ~ +48 VDC
Consumption	0.1 A @ 24 VDC

Mechanical
Casing	Plastic
Dimensions (mm)	33 x 127 x 99 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Technical

ECAT-2610 EtherCAT to Modbus RTU Master gateway datasheet
