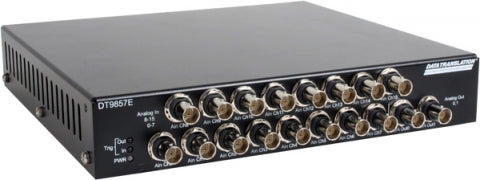

DT9857E-8-xAO USB Dynamic Signal Analyzer: 8 IEPE AI, 24-bit, 105.4 kHz; 16 DIO; 1 Tachometer
DT9857E-8-xAO USB Dynamic Signal Analyzer: 8 IEPE AI, 24-bit, 105.4 kHz; 16 DIO; 1 Tachometer

DT9857E-8-xAO USB Dynamic Signal Analyzer: 8 IEPE AI, 24-bit, 105.4 kHz; 16 DIO; 1 Tachometer

USB Dynamic Signal Analyzer: 8 IEPE AI, 24-bit, 105.4 kHz; 32-bit, 216 kHz; 16 DIO; 1 Tachometer
Contact for Price

FREE delivery to UK on orders over £500

Or phone us for our best price

0800 048 1057

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
Description
Description
x

USB Dynamic Signal Analyzer: 8 IEPE AI, 24-bit, 105.4 kHz; 32-bit, 216 kHz; 16 DIO; 1 Tachometer

Features
Features
x
  • Simultaneous IEPE analog inputs, waveform stimulus analog outputs, tachometer synchronous with input data stream, advanced pre and post triggering, 16 DIO (8 in/8 out), synchronous counter/timers, and Sync Bus for up to 256 A/D channels and 32 D/A channels.
  • All inputs and outputs can be synchronized for measurement data coherence...
    • Supports the ability to return the value of the digital input port, tachometer, measure counters, and general-purpose counter in the analog input data stream, all synchronous with analog input data stream…providing correlation of tachometer or any digital input with analog signals.
  • Eight (DT9857E-08) or sixteen (DT9857E-16) Simultaneous, IEPE inputs, 4mA at 24V compliance, all inputs use 24-bit Delta-Sigma A/D converters for high resolution measurement to 105.4kHz, AC or DC coupling.
  • Start trigger (software, threshold, external, or Sync Bus) for acquiring post-trigger samples; reference trigger for acquiring pre/post trigger samples.
  • Analog threshold trigger on any of the analog input channels to program the threshold value from –10V to +10V.
  • SyncBus connector for synchronizing acquisition and waveform stimulus on up to 16 DT9857E modules
  • External 4.75V to 28V Power Supply
Specifications
Specifications
x
ANALOG INPUT
CHANNELS RESOLUTION MAX SAMPLE RATE SAMPLING
Up to 16 24-bit 105.4 kS/s/ch Simultaneous
ISOLATION SNR THD SFDR
— 94 dB Typ. -110 dB Typ. 118 dBFS Typ.
ANALOG OUTPUT
CHANNELS RESOLUTION SPEED
- - -
DIGITAL I/O
CHANNELS COUNTER/TIMERS TACHOMETER
16 — 1
SOFTWARE POWER
OS SUPPORT DRIVERS POWER
Windows® Open Layers® SW Suite External




Technical
Technical
x

Please note, DT9857E series devices with Analog Outputs are now discontinued.
