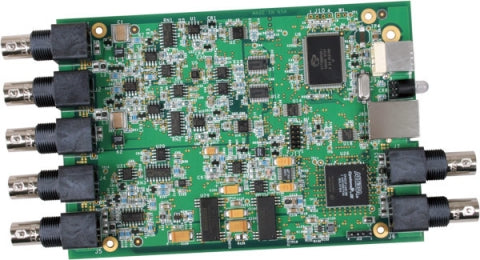

DT9837B-OEM USB-powered Dynamic Signal Analyzer; 24-bit, 105.4kHz, 4 IEPE AI, 1 Tach, No Enclosure
USB-powered Dynamic Signal Analyzer; 24-bit, 105.4kHz, 4 IEPE AI, 1 Tach, No Enclosure
FREE delivery to UK on orders over £500
Or phone us for our best price
0800 048 1057
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over £500
Free Returns
30 Day Money Back Guarantee
Description
xUSB-powered Dynamic Signal Analyzer; 24-bit, 105.4kHz, 4 IEPE AI, 1 Tach, No Enclosure
Features
x- 4 Simultaneous, 24-bit Delta-Sigma A/D channels
- Support for IEPE inputs, including use of a 4mA current source
- Up to 105.4 kHz per channel
- Tachometer input support in the A/D data stream
- Sync multiple modules for channel expansion using RJ45 synchronization (LVDS) connector
- BNC or OEM options available
- Powered by USB
- Includes software and drivers
- Supported by QuickDAQ application software
Specifications
x| ANALOG INPUT | |||
| CHANNELS | RESOLUTION | MAX SAMPLE RATE | SAMPLING |
| 4 | 24-bit | Up to 105.4 kS/s/ch | Simultaneous |
| ISOLATION | SNR | THD | SFDR |
| — | 95 dB Typ. | -104 dB Typ. | 110 dBFS Typ. |
| ANALOG OUTPUT | |||
| CHANNELS | RESOLUTION | SPEED | |
| DIGITAL I/O | |||
| CHANNELS | COUNTER/TIMERS | TACHOMETER | |
| — | — | 1 | |
| SOFTWARE | POWER | |
| OS SUPPORT | DRIVERS | POWER |
| Windows® | Open Layers® SW Suite | Bus powered |
