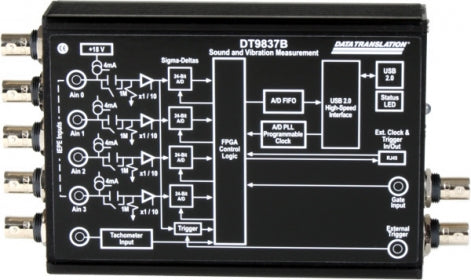

DT9837B USB-powered Dynamic Signal Analyzer; 24-bit, 105.4 kHz, 4 IEPE AI, 1 Tach

£2,366.00; £2,366.00; (-0%)
Unit price: per

(Price excludes VAT)

USB-powered Dynamic Signal Analyzer; 24-bit, 105.4 kHz, 4 IEPE AI, 1 Tach

Model: DT9837B

Quantity:

Subtotal: £2,366.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

DT9837B USB-powered Dynamic Signal Analyzer; 24-bit, 105.4 kHz, 4 IEPE AI, 1 Tach

£2,366.00

Quantity:

DT9837B USB-powered Dynamic Signal Analyzer; 24-bit, 105.4 kHz, 4 IEPE AI, 1 Tach

£2,366.00

Description
Features
Specifications
Technical
Applications

Description

The DT9837 Series high accuracy dynamic signal acquisition modules are ideal for portable noise, vibration, and acoustic measurements. Four, 24-bit, IEPE (ICP®) sensor inputs are synchronized with a tachometer input (depending on the model selected) to provide data streams that are matched in time. These rugged, small modules are USB powered, making them ideal for portable measurement applications.

Features

4 Simultaneous, 24-bit Delta-Sigma A/D channels
Support for IEPE inputs, including use of a 4mA current source
Up to 105.4 kHz per channel
Tachometer input support in the A/D data stream
Sync multiple modules for channel expansion using RJ45 synchronization (LVDS) connector
BNC or OEM options available
Powered by USB
Includes software and drivers
Supported by QuickDAQ application software

Specifications

ANALOG INPUT
CHANNELS	RESOLUTION	MAX SAMPLE RATE	SAMPLING
4	24-bit	Up to 105.4 kS/s/ch	Simultaneous
ISOLATION	SNR	THD	SFDR
—	95 dB Typ.	-104 dB Typ.	110 dBFS Typ.
ANALOG OUTPUT
CHANNELS	RESOLUTION	SPEED

DIGITAL I/O
CHANNELS	COUNTER/TIMERS	TACHOMETER
—	—	1

SOFTWARE		POWER
OS SUPPORT	DRIVERS	POWER
Windows®	Open Layers® SW Suite	Bus powered
