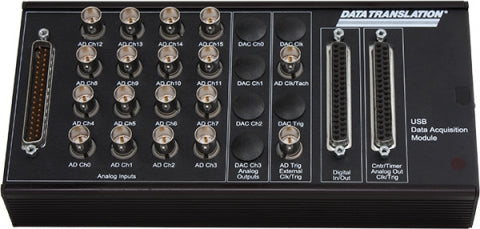

DT9826 Simultaneous USB Data Acquisition (DAQ) Module; 24-bit, 41kHz per channel, 16 AI, 16 DIO, 2 C/T, 1 Tachometer, BNC Connectors

£3,285.00; £3,285.00; (-0%)
Unit price: per

(Price excludes VAT)

Simultaneous USB Data Acquisition (DAQ) Module; 24-bit, 41kHz per channel, 16 AI, 16 DIO, 2 C/T, 1 Tachometer, BNC Connectors

Model: DT9826

Quantity:

Subtotal: £3,285.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

DT9826 Simultaneous USB Data Acquisition (DAQ) Module; 24-bit, 41kHz per channel, 16 AI, 16 DIO, 2 C/T, 1 Tachometer, BNC Connectors

£3,285.00

Quantity:

DT9826 Simultaneous USB Data Acquisition (DAQ) Module; 24-bit, 41kHz per channel, 16 AI, 16 DIO, 2 C/T, 1 Tachometer, BNC Connectors

£3,285.00

Description
Features
Specifications
Technical
Applications

Description

The DT9826 is a high-performance, multifunction USB data acquisition (DAQ) module. The DT9826 features 16 simultaneous analog inputs, 16 digital input/output lines, 2 counter/timers, and a tachometer channel on a single plug-and-play device. Available as a board-level OEM version for embedded test applications, or installed in a metal BNC connection box for easy sensor connections.

Features

16 Simultaneous, 24-bit Delta-Sigma A/D channels with ±10V input range
Up to 41.6 kS/s per channel
Simultaneous subsystem operation: analog input, digital I/O, counter/timers, and tachometer
16 DIO, two 32-bit C/ T channels, 1 Tachometer
±500V galvanic isolation...prevent ground loops
Board-level only OEM version available
Powered by USB
Supported by QuickDAQ application software
Compatible with LabVIEW™ and MATLAB®

Specifications

Analog Input
Channels	Resolution	Max Sample Rate
16	24-bit	41 kS/s/ch
Sampling	Ranges	Isolation
Simultaneous	±10 V	±500 V ch-ground
Analog Output
Channels	Resolution	Speed
—	—	—
Digital I/O
Channels	Counter/Timers	Encoder
16	2	—
