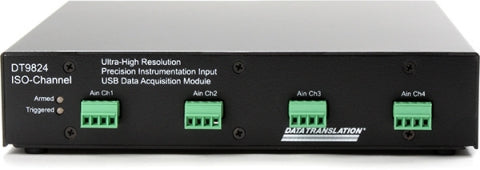

DT9824 Isolated, Simultaneous, High-Precision USB Device

£2,231.00; £2,231.00; (-0%)
Unit price: per

(Price excludes VAT)

High Accuracy, Simultaneous USB Data Acquisition (DAQ) Module, 24-bit, 4800Hz per channel, 4 AI, 16 DIO, ISO-Channel

Model: DT9824

Quantity:

Subtotal: £2,231.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

DT9824 Isolated, Simultaneous, High-Precision USB Device

£2,231.00

Quantity:

DT9824 Isolated, Simultaneous, High-Precision USB Device

£2,231.00

Description
Features
Specifications
Technical
Applications

Description

The DT9824 USB data acquisition (DAQ) module offers the highest stability and accuracy for measuring analog signals. Every signal input, both analog and digital, is fully isolated from each other. This technology, ISO-Channel™, guarantees that all signals are protected from any environmental or system noise.

The high stability design of these modules offer four distinct advantages:

10ppm accuracy
temperature coefficient of ±0.05µV/° C
CMRR of greater than 150dB
1.5 ppm maximum noise

These features deliver data acquisition results that are twenty times better than the normal solution from another system.

These modules are ideally suited for chromatography, seismic, weigh scale, and medical applications where accuracy and stability are imperative. The rugged, compact module is fully powered by USB and can be used as a portable device or mounted in a rack. Supported by QuickDAQ application software to get up and running quickly.

Features

Voltage Inputs:

4, simultaneous analog input channels: 24-bit resolution
±500V galvanic isolation: ISO-Channel technology provides channel-to-channel protection...guarantees noise immunity
Maximum flexibility for any signal input: input ranges of ±10V, ±1.25V, ±0.625V, ±0.3125V

Advanced Sampling Modes:

Sampling frequency: up to 4800Hz per channel
Continuously paced analog input operations
Software-programmable trigger type
Channel Gain list allows measurement of any combination of channels/gains

Isolated Digital I/O:

8 opto-isolated digital input lines
8 opto-isolated digital output lines
Galvanically isolated digital I/O to 250V
Read the digital input port through the analog input

Specifications

Analog Input
Channels	Resolution	Max Sample Rate
4	24-bit	4.8 kS/s/ch
Sampling	Ranges	Isolation
Simultaneous	±10 V, ±1.25 V, ±625 mV, ±312.5 mV	±500 V ch-ch
Analog Output
Channels	Resolution	Speed
—	—	—
Digital I/O
Channels	Counter/Timers	Encoder
16	—	—
