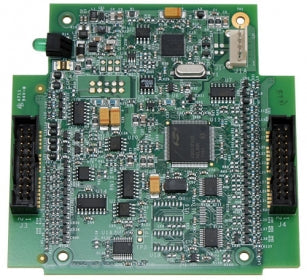

DT9812-10V-OEM Low Cost USB Data Acquisition (DAQ) Board, 12-bit, 50kHz, 8 AI, 2 AO, 16 DIO, 1 C/T, No Enclosure
DT9812-10V-OEM Low Cost USB Data Acquisition (DAQ) Board, 12-bit, 50kHz, 8 AI, 2 AO, 16 DIO, 1 C/T, No Enclosure

DT9812-10V-OEM Low Cost USB Data Acquisition (DAQ) Board, 12-bit, 50kHz, 8 AI, 2 AO, 16 DIO, 1 C/T, No Enclosure

£495.00
£495.00
(-0%)
Low Cost USB Data Acquisition (DAQ) Board, 12-bit, 50kHz, 8 AI, 2 AO, 16 DIO, 1 C/T, No Enclosure
Subtotal: £495.00

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
DT9812-10V-OEM Low Cost USB Data Acquisition (DAQ) Board, 12-bit, 50kHz, 8 AI, 2 AO, 16 DIO, 1 C/T, No Enclosure

DT9812-10V-OEM Low Cost USB Data Acquisition (DAQ) Board, 12-bit, 50kHz, 8 AI, 2 AO, 16 DIO, 1 C/T, No Enclosure

£495.00
DT9812-10V-OEM Low Cost USB Data Acquisition (DAQ) Board, 12-bit, 50kHz, 8 AI, 2 AO, 16 DIO, 1 C/T, No Enclosure

DT9812-10V-OEM Low Cost USB Data Acquisition (DAQ) Board, 12-bit, 50kHz, 8 AI, 2 AO, 16 DIO, 1 C/T, No Enclosure

£495.00
Description
Description
x

The DT9812 Series of low-cost USB data acquisition (DAQ) devices provide analog input along with analog output and digital functions. Each device is designed with a shielded, rugged enclosure. OEM versions are available for embedded applications.

Features
Features
x
  • 8 analog inputs, 12-bit, up to 100 kS/s
  • 2 analog outputs, 12-bit, up to 75 kS/s
  • 16 digital I/O, one 32-bit counter timer
  • Shielded, rugged enclosure with built-in screw terminals
  • Powered by USB
  • Supported by QuickDAQ application software
  • Compatible with LabVIEW™ and MATLAB®
  • OEM option: board-level module with two 20-pin connectors for connecting I/O signals
  • DT9812-10V is a Keithley KUSB-3100 equivalent
Specifications
Specifications
x
Analog Input
Channels Resolution Max Sample Rate
8 12-bit Up to 100 kS/s
Sampling Ranges Isolation
Multiplexed ±10 V, ±5 V, ±2.5 V, ±1.25 V —
Analog Output
Channels Resolution Speed
2 12-bit Up to 75 kS/s
Digital I/O
Channels Counter/Timers Encoder
16 1 —
Technical
Technical
x
Applications
Applications
x
