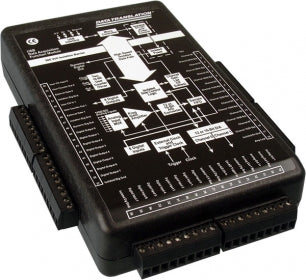

DT9806 USB Data Acquisition Module; 16-bit, 50kHz, 16AI, 2 AO, 16 DIO, 2 C/T

DT9806 USB Data Acquisition Module; 16-bit, 50kHz, 16AI, 2 AO, 16 DIO, 2 C/T

£1,581.00
DT9806 USB Data Acquisition Module; 16-bit, 50kHz, 16AI, 2 AO, 16 DIO, 2 C/T

DT9806 USB Data Acquisition Module; 16-bit, 50kHz, 16AI, 2 AO, 16 DIO, 2 C/T

£1,581.00
Description
Description
x

The DT9805 and DT9806 isolated, portable USB data acquisition (DAQ) modules feature integrated signal conditioning designed specifically for thermocouple measurements.

Features
Features
x
  • 16SE/8DI analog input channels for thermocouple or voltage measurements
  • Support for B, E, J, K, N, R, S, and T thermocouple types
  • One cold junction compensation (CJC) circuit for all thermocouple inputs
  • 16-bit resolution with sampling rates up to 50kHz
  • 16 DIO, 2 C/T
  • Optional analog outputs
  • ±500V galvanic isolation to the computer to prevent ground loops
  • Powered by USB
  • Supported by QuickDAQ application software
  • Compatible with LabVIEW™ and MATLAB®
  • DT9806 is a Keithley KUSB-3108 equivalent
Specifications
Specifications
x
Analog Input
Channels Resolution Max Sample Rate Sampling
16 SE/8 DIFF 16-bit 50 kS/s Multiplexed
Ranges Isolation
±10 V, ±1 V, ±100 mV, ±20 mV ±500 V ch-host
Sensor
Thermocouple RTD Thermistor Voltage
Yes — — Yes
Analog Output
Channels Resolution Speed
Up to 2 16-bit —
Digital I/O
Channels Counter/Timers Encoder
16 2 —
