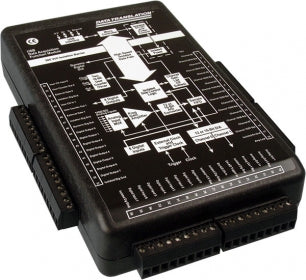

DT9804 USB Data Acquisition (DAQ) Module; 16-bit, 100kHz, 16AI, 2 AO, 16 DIO, 2 C/T
DT9804 USB Data Acquisition (DAQ) Module; 16-bit, 100kHz, 16AI, 2 AO, 16 DIO, 2 C/T

DT9804 USB Data Acquisition (DAQ) Module; 16-bit, 100kHz, 16AI, 2 AO, 16 DIO, 2 C/T

£1,518.00
£1,518.00
(-0%)
USB Data Acquisition (DAQ) Module; 16-bit, 100kHz, 16AI, 2 AO, 16 DIO, 2 C/T
Subtotal: £1,518.00

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
DT9804 USB Data Acquisition (DAQ) Module; 16-bit, 100kHz, 16AI, 2 AO, 16 DIO, 2 C/T

DT9804 USB Data Acquisition (DAQ) Module; 16-bit, 100kHz, 16AI, 2 AO, 16 DIO, 2 C/T

£1,518.00
DT9804 USB Data Acquisition (DAQ) Module; 16-bit, 100kHz, 16AI, 2 AO, 16 DIO, 2 C/T

DT9804 USB Data Acquisition (DAQ) Module; 16-bit, 100kHz, 16AI, 2 AO, 16 DIO, 2 C/T

£1,518.00
Description
Description
x

The DT9800 Series of isolated, multifunction USB data acquisition (DAQ) provide analog input, counter, and digital I/O data.

Features
Features
x
  • ±500V galvanic isolation: protects signal integrity
  • 16SE/8DI analog inputs
  • 12- or 16-bit resolution
  • Up to 100 kHz sampling
  • 16 DIO, two 16-bit C/T
  • Optional 12- or 16-bit analog outputs
  • Powered by USB
  • Includes software and drivers
  • Supported by QuickDAQ application software
  • Compatible with LabVIEW™ and MATLAB®
Specifications
Specifications
x
Analog Input
Channels Resolution Max Sample Rate
16 SE/8 DIFF 12-bit or 16-bit 100 kS/s
Sampling Ranges Isolation
Multiplexed ±10 V, ±5 V, ±2.5 V, ±1.25 V, 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V ±500 V ch-ground
Analog Output
Channels Resolution Speed
Up to 2 12-bit or 16-bit Up to 50 S/s
Digital I/O
Channels Counter/Timers Encoder
16 2 —
