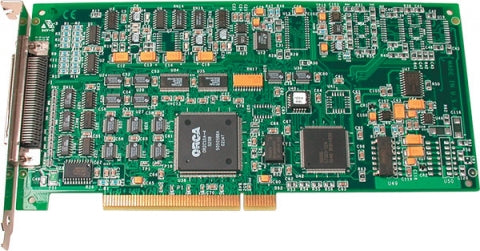

DT321-PBF PCI Data Acquisition Board, 16-bit, 250 kHz, 16SE/8DI analog inputs

£1,115.00; £1,115.00; (-0%)
Unit price: per

(Price excludes VAT)

PCI Data Acquisition Board, 16-bit, 250 kHz, 16SE/8DI analog inputs

Model: DT321-PBF

Quantity:

Subtotal: £1,115.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

DT321-PBF PCI Data Acquisition Board, 16-bit, 250 kHz, 16SE/8DI analog inputs

£1,115.00

Quantity:

DT321-PBF PCI Data Acquisition Board, 16-bit, 250 kHz, 16SE/8DI analog inputs

£1,115.00

Description
Features
Specifications
Technical
Applications

Description

DT300 Series boards deliver high-quality, low-cost, multifunction PCI data acquisition with the flexibility of six different versions to match your needs. Each board contains 16SE/8DI analog inputs, 23 digital I/O lines, and four counter/timers. Options include 12- and 16-bit analog inputs and analog outputs.

The DT321-PBF is a 16-bit PCI Data Acquisition Board, with 16Single-Ended/8Differential analog inputs, capable of sampling speeds up to 250 kHz.

Features

High-speed dynamic digital inputs can time stamp your digital input in relation to A/D
Flexible triggering and clocking capabilities
1024-location channel-gain list allows flexible channel selection in any sequence desired
Included software and drivers
Keithley equivalent parts:
- DT301 = KPCI-3101A
- DT302 = KPCI-3102A
- DT303 = KPCI-3101A
- DT304 = KPCI-3104A

Specifications

Analog Input
Channels	Resolution	Max Sample Rate
16 SE/8 DIFF	12-bit or 16-bit	Up to 400 kS/s
Sampling	Ranges	Isolation
Multiplexed	±10 V, ±5 V, ±2.5 V, ±1.25 V, 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V	—
Analog Output
Channels	Resolution	Speed
Up to 2	12-bit or 16-bit	Up to 10 kS/s
Digital I/O
Channels	Counter/Timers	Encoder
23	4	—
