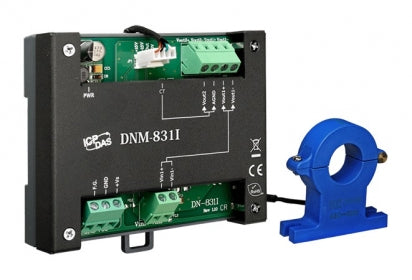

DNM-831 Voltage Attenuator and Current Transformer series (AC/DC)

The DNM-800 series are a range of Voltage Attenuator and Current Transformer units designed for use in high-voltage applications.

The current can be converted into +/-10 Vpp attenuated signal, so that a general electronic measuring device is able to read the signals. Compared to the power meter products (PM-3033, PM-3133, PM-4324, etc.), in addition to AC signals, the DNM-800 series can convert DC signals as well.

The users can then use an appropriate Remote I/O Modules such as: M-7017R, I-87017RW, or ET-7217 to measure the converted +/-10 VDC signal via DNM-800 series. And use M-7017RMS or I-87017W-RMS, etc. to measure the AC signals.

By using DNM-800 series, the power data of all kinds of machines and AC/DC motors can be easily measured and retrieved, and then the analyzed data can be used to develop a model to build a failure warning system.

Please see Recommended products section at the base of the page for the available variant pricing.
