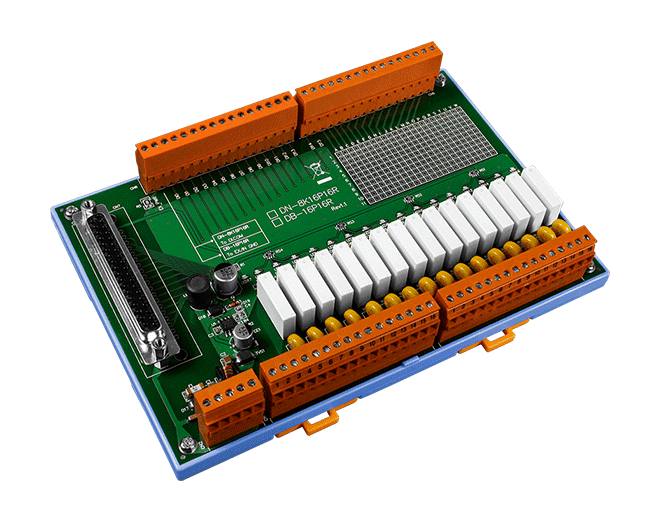

DN-8K16P16R 16-channel DI, 16-channel Relay (Form A, 3A) Output Board

£173.00; £173.00; (-0%)
Unit price: per

(Price excludes VAT)

The DN-8K16P16R is a16-channel DI, 16-channel relay (Form A, 3A) Terminal Board (Pitch= 3.81 mm) with DIN-rail Mounting (RoHS) Includes: CA-3705A (DB37 Male to Female Cable, 90º, 0.5 M)

Model: DN-8K16P16R

Quantity:

Subtotal: £173.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

DN-8K16P16R 16-channel DI, 16-channel Relay (Form A, 3A) Output Board

£173.00

Quantity:

DN-8K16P16R 16-channel DI, 16-channel Relay (Form A, 3A) Output Board

£173.00

Description
Features
Specifications
Technical
Applications

Description

The DN-8K16P16R is a16-channel DI, 16-channel relay (Form A, 3A) Terminal Board (Pitch= 3.81 mm) with DIN-rail Mounting (RoHS)
Includes: CA-3705A (DB37 Male to Female Cable, 90º, 0.5 M)

Model: I-8042W and I-87042W with DN-8K16P16R

Features

37-pin D-sub connector to quickly link to a I-8042W or I-87042W
16 Form A Signal Relay
16 LEDs to display the state of individual relays
Screw terminals for field wiring
Power Input: +12 ~ 30 VDC
DIN-Rail mounting for industrial usage

Specifications

Digital Input
Channels	16
Type	Pin-to-pin terminals

Relay Output
Channels	16
Contact Rating	Form A: 3 A @ 250 VAC
Operate Time	Form A: 10 ms
Release Time	Form A: 5 ms
Mechanical Endurance	SPST:10,000,000 ops.

Power
Input Range	+12 ~ 30 VDC
Consumption	3.75 W Max.

Mechanical
Dimensions (mm)	118 x 174 (W x L)
Installation	DIN-Rail mounting

Environment
Operating Temperature	-25 ~ 75°C
Storage Temperature	-30 ~ +85â„ƒ
Humidity	10% ~ 90% RH, Non-condensing
