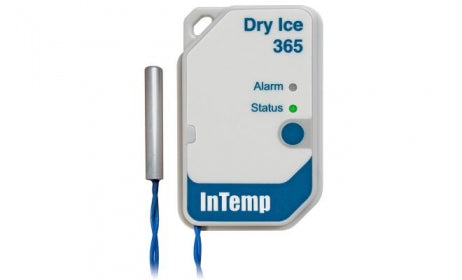

CX603 InTemp Dry-ice Multiple-Use Data Logger

£214.00; £214.00; (-0%)
Unit price: per

(Price excludes VAT)

Bluetooth Dry-ice data logger with NIST Certificate of Calibration.

Model: CX603

Quantity:

Subtotal: £214.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

CX603 InTemp Dry-ice Multiple-Use Data Logger

£214.00

Quantity:

CX603 InTemp Dry-ice Multiple-Use Data Logger

£214.00

Description
Features
Specifications
Technical
Applications

Description

The InTemp CX603 Dry Ice data logger is a Bluetooth-enabled multiple-use logger that records temperature data for up to 365 days. The CX603’s built-in 1.5m probe measures temperatures as low as -95°C (-139°F) and includes a protective sheath to prevent accidental cutting of the cable, and a clip for secure mounting.

Using the InTemp® app on your mobile device, you can easily configure the CX603 with one of multiple preset configurations, or set up a custom configuration. The logger has a built-in alarm to alert you to excursions. And logger reports can be quickly downloaded to your phone or tablet and uploaded to an InTempConnect® account, where you can analyze and export data as needed.

With the optional CX Gateway, you can get real-time notification of temperature excursions and automatically download data from loggers within range of the device.

Available Apps are:

InTempConnect: A cloud-based data command-center control for monitoring all loggers throughout your global supply chain

InTemp App: A free mobile app that streamlines logger configuration and readout, and automatically uploads reports to InTempConnect

InTempVerify: A free mobile app that manages user permissions and the activation of data downloads by anyone—anywhere, anytime

Features

IATA Battery compliant
3-Point NIST Certificate of Calibration, valid for one year from date of purchase
Anti-cut sheath
Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
Compact and lightweight – ideal for shipping pharmaceuticals
No need to open containers to access data
Ensures secure data via encrypted technology

Specifications

External Temperature Probe

Range: -95° to +50°C (-139° to +122°F)
Accuracy:
±1.5°C from -95° to -40°C (±2.7°F from -139 to -40°F)
±1.0°C from -40° to -10°C (±1.8°F from -40° to +14°F)
±0.5°C from -10° to +50°C (±0.9°F from +14° to +122°F)
Resolution:
0.013°C at 25°C (0.023°F at 77°F)
NIST Calibration: Three point NIST calibration, probe only @ -70, -10 and -5°C
Cable length: 1.5m (4.92 ft)
Probe Dimensions: Food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches) long, 4.78 mm (0.188 inches) diameter

Logger

Radio Power: 1 mW (0 dBm)
Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
Logger Operating Range: -30° to 50°C (-22° to 122°F), 0 to 95% RH (non-condensing)
Logging Rate: 1 second to 18 hours
Duration: 365 days
Battery Type: CR2450 3V Lithium, non-replaceable
Battery Life: 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive downloads, and paging all impact battery life.
Memory: 16,000 measurements maximum
Full Memory Download Time: Approximately 30 seconds; may take longer the farther the device is from the logger
Dimensions: 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
Weight: 25.5 g (0.9 oz)
Environmental Rating: IP65

Passed RTCA DO160G, part 21H

Technical

CX603 Dry-ice data logger datasheet
