CX405 InTemp Bluetooth RTD Dry Ice Temperature Data Logger
CX405 InTemp Bluetooth RTD Dry Ice Temperature Data Logger

CX405 InTemp Bluetooth RTD Dry Ice Temperature Data Logger

£313.00
£313.00
(-0%)
(Price excludes VAT)
Bluetooth NIST-certified temperature data logger with RTD Based Temperature probe
Model: CX405
Subtotal: £313.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

CX405 InTemp Bluetooth RTD Dry Ice Temperature Data Logger

CX405 InTemp Bluetooth RTD Dry Ice Temperature Data Logger

£313.00
CX405 InTemp Bluetooth RTD Dry Ice Temperature Data Logger

CX405 InTemp Bluetooth RTD Dry Ice Temperature Data Logger

£313.00
Description

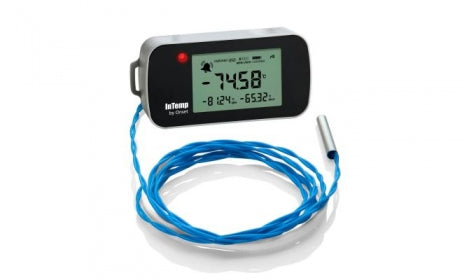

The InTemp CX405-RTD Dry Ice data logger is specifically designed for ultra-low temperature monitoring of vaccines and pharmaceuticals in storage and transportation environments. Using Bluetooth technology, it wirelessly communicates with the InTemp CX Gateway and/or the free InTemp mobile app, which send data to the free InTempConnect cloud platform. Its built-in 1.5 m external probe can measure temperatures as low as -95°C (-139°F) and up to 50°C (122°F) with a high degree of accuracy, and a protective sheath prevents accidental cutting of the probe cable. Includes a clip for secure mounting.

This dry ice data logger also features a built-in LCD display to view temperature readings, visual and audible alarms, and battery level – plus the ability to view and display the minimum and maximum readings.

By adding the InTemp Gateway, users can get text or email notifications of temperature excursions, as well as automatic data downloads from loggers within range of the CX Gateway device.

Available Apps are:

InTempConnect: A cloud-based data command-center control for monitoring all loggers throughout your global supply chain

InTemp App: A free mobile app that streamlines logger configuration and readout, and automatically uploads reports to InTempConnect

InTempVerify: A free mobile app that manages user permissions and the activation of data downloads by anyone—anywhere, anytime

Features

 Two-point NIST Certificate of Calibration (probe only), good for one year
• Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
• Easy logger setup and data download in seconds
• Advanced audible and visual alarm capabilities for notification of temperature excursions
• LCD display with current and daily min/max temperatures
• Protective, anti-cut cable sheath
• User-replaceable AAA batteries to guard against local power loss
• Built to FDA, USP, EU, and WHO standards
• Free InTemp mobile app to configure logger, view data, and access the free InTempConnect cloud software service
• Real-time alerts and automatic data downloads with optional InTemp CX Gateway device

Specifications

External Temperature Probe

  • Range: -95° to +50°C (-139° to 122°F)
  • Accuracy:
    ±0.5°C from -10° to 50°C (±0.9°F from -14° to +122°F)
    ±1.0°C from -40° to -10°C (±1.8°F from -40° to -10°F    )
    ±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F)
  • Resolution:
    0.024°C at 25°C (0.04°F at 77°F)
  • NIST Calibration: Two point NIST calibration, probe only
  • Cable length: 1.5m (4.92 ft)

Internal Temperature Sensor

  • Range: -30° to 70°C (-22° to 158°F)
  • Resolution: 0.024°C @ 25°C (0.04°F at 77°F)
  • Accuracy:
    ±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
    ±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)

Logger

  • Radio Power: 1 mW (0 dBm)
  • Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
  • Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
  • Logger Operating Range: -30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing)
  • Logging Rate: 1 second to 18 hours
  • Battery Type: Two AAA batteries, user replaceable
  • Battery Life: 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life.
  • Memory: 128 KB (75,245 total measurements or 37,622 probe and internal paired measurements)
  • Full Memory Download Time: Approximately 60 seconds; may take longer the farther the device is from the logger
  • LCD: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
  • Dimensions: 9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
  • Weight: 90.2 g (3.18 oz)
  • Environmental Rating: IP54
src=

Passed RTCA DO160G, part 21H



Technical

CX405 InTemp RTD Dry Ice temperature logger datasheet
