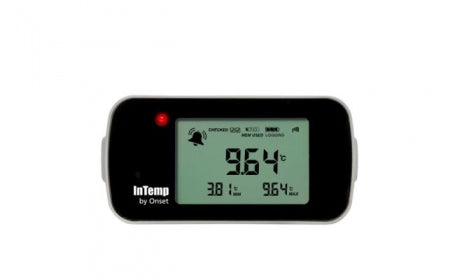

CX403 InTemp Bluetooth Ambient Temperature Data Logger

• Internal sensor only (No probe)
• Refrigerated to ambient monitoring
• Easy-to-read display with current and daily min/max temperatures
• Logger setup and download of data in seconds – without a PC or cable
• +/- 0.5C accuracy for reliable temperature readings
• GDP/GMP compliant
• Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
• Bluetooth transmission of data and alarm states
• Real-time alerts and automatic data downloads with optional CX Gateway device
• Battery-powered to guard against local power loss

Ambient Temperature Sensor

• Range: -30° to 70°C (-22° to 158°F)
• Accuracy:
  ±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
  ±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)
• Resolution:
  0.024°C at 25°C (0.04°F at 77°F)
• NIST Calibration: Single point NIST calibration

Logger

• Radio Power: 1 mW (0 dBm)
• Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
• Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
• Logger Operating Range: -30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing)
• Logging Rate: 1 second to 18 hours
• Battery Type: Two AAA batteries, user replaceable
• Battery Life: 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life.
• Memory: 128 KB (84,650 measurements, maximum)
• Full Memory Download Time: Approximately 60 seconds; may take longer the farther the device is from the logger
• LCD: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
• Dimensions: 9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
• Weight: 90.2 g (3.18 oz)
• Environmental Rating: IP54

Passed RTCA DO160G, part 21H

CX403 InTemp Ambient temperature logger datasheet
