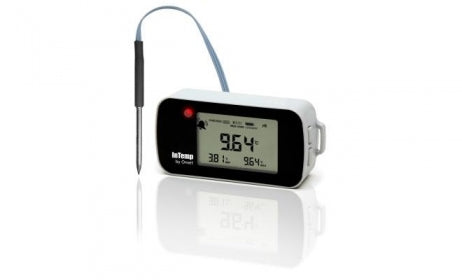

CX402-T4M InTemp Bluetooth Temperature Data Logger with 4m Needle probe

£219.00; £219.00; (-0%)
Unit price: per

(Price excludes VAT)

Bluetooth NIST-certified temperature data logger with 4m needle-tip Temperature probe

Model: CX402-T4M

Quantity:

Subtotal: £219.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

CX402-T4M InTemp Bluetooth Temperature Data Logger with 4m Needle probe

£219.00

Quantity:

CX402-T4M InTemp Bluetooth Temperature Data Logger with 4m Needle probe

£219.00

Description
Features
Specifications
Technical
Applications

Description

InTemp CX402-xxM (with Probe only) data loggers monitor temperatures in refrigerators, freezers, and other temperature-controlled environments to comply with global GDP requirements. The loggers communicate wirelessly via Bluetooth to mobile devices. Using the InTemp app, you can easily view data, check logger status, set alarms, and create and share secure PDF reports for streamlined reporting and regulatory compliance. All loggers feature a built-in LCD display to view current and daily min and max temperatures, advanced audible and visual alarm capabilities for notification of temperature excursions, an internal sensor for ambient temperature monitoring, and a single-point NIST Certification of Calibration for both the logger body and probe.

With the optional CX Gateway, you can get remote notifications of temperature excursions and automatically download data from loggers within range of the device. Learn more about the CX Gateway here.

Models are available with a 2- or 4-meter external temperature probe for tracking actual refrigerator temperatures without Glycol buffers or freezer applications.

Features

Probe only (no glycol bottle)
GDP/GMP compliant
Frozen to ambient monitoring
Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
Easy-to-read display with current and daily min/max temperatures
Bluetooth transmission of data and alarm states
Logger setup and download of data in seconds – without a PC or cable
Real-time alerts and automatic data downloads with optional CX Gateway device
+/- 0.5C accuracy for reliable temperature readings
Battery-powered to guard against local power loss
NIST Certificate of Calibration

Specifications

External Temperature Probe

Range: -40° to +100°C (-40° to 212°F)
Accuracy:
±1.0°C from -40° to -25°C (±1.8°F from -40° to -13°F)
±0.5°C from -25° to +80°C (±0.9°F from -13° to +176°F)
±1.0°C from +80° to +100°C (±1.8°F from +176° to +212°F)
Resolution:
0.024°C at 25°C (0.04°F at 77°F)
NIST Calibration: Single point NIST calibration, probe and logger body
Cable length: 4m (13.12 ft) flat ribbon cable

Internal Temperature Sensor

Range: -30° to 70°C (-22° to 158°F)
Resolution: 0.024°C @ 25°C (0.04°F at 77°F)
Accuracy:
±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)

Logger

Radio Power: 1 mW (0 dBm)
Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
Time accuracy: +/- 1 minute per month at 25°C (77°F)
Logger Operating Range: -30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing)
Logging Rate: 1 second to 18 hours
Battery Type: Two AAA batteries, user replaceable
Battery Life: 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life.
Memory: 128 KB (84,650 measurements maximum)
Full Memory Download Time: Approximately 60 seconds; may take longer the farther the device is from the logger
LCD: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Dimensions: 9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
Weight: 90.2 g (3.18 oz)
Environmental Rating: IP54

Passed RTCA DO160G, part 21H

Technical

CX402 Temperature Logger with Probe Datasheet
