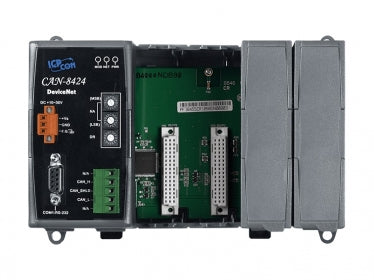

CAN-8424 DeviceNet Remote I/O module (4 slots)

£381.00; £381.00; (-0%)
Unit price: per

(Price excludes VAT)

DeviceNet Remote I/O module with 4 slots for I-87k or I-8000 plug-in I/O modules

Model: CAN-8424

Quantity:

Subtotal: £381.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

CAN-8424 DeviceNet Remote I/O module (4 slots)

£381.00

Quantity:

CAN-8424 DeviceNet Remote I/O module (4 slots)

£381.00

Description
Features
Specifications
Technical
Applications

Description

The CAN-8424 main unit based on the modular design offers many good features to the users and provides more flexibility in data acquisition and control system. In addition, ICP DAS also presents a CAN-8424 Utility tool to allow users to configure and create the EDS file for the specific IO modules plugged in (i-87K series or i-8000 series are supported). Therefore, users can easily apply the CAN-8424 embedded controller in DeviceNet network.

Features

DeviceNet Version : DeviceNet Specification Volume I & II, Release 2.0
Number of Nodes : 64(Max)
Support Message Groups : Group 2 only Server
UCMM : Not Support
I/O Operating Modes : Poll, Bit-Strobe, Change of State/ Cyclic
No. of Fragment I/O : 128 Bytes (Max) (Input/ Output)
MAC ID Setting : Rotary Switch
Baud Rate Setting : Rotary Switch

Specifications

CPU Module
CPU	80186, 80 MHz or compatible
EEPROM	16 KB
Flash	512 KB
NVRAM	31 bytes (battery backup, data valid for up to 10 years)
SRAM	512 KB
Real Time Clock	Yes
Watchdog Timer	Watchdog IC

LED Indicators
Status	1 x Power 2 x DeviceNet status

I/O Expansion
Slots	4 slots

COM Ports
Ports	1 x RS-232 (Utility Port) 9-pin male D-Sub (DTE: RxD, TxD, RTS, CTS, DTR, DSR, RI, GND)

DeviceNet
Controller	NXP SJA1000T with 16 MHz clock
Ports	1
Connection Supported	1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O 1 connection for COS/Cyclic I/O
Baud Rate	125 k, 250 k, 500 k
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Jumper for 120 Ω terminal resistor
Specification	Volume I, Release 2.0 & Volume II, Release 2.0
Node ID	0 ~ 63
Shutdown Message	Yes
Subscribe	Group 2 Only Server

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	2.5 W

Mechanical
Dimensions (mm)	188 x 132 x 91 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 â„ƒ
Storage Temperature	-30 ~ +80 â„ƒ
Humidity	10 ~ 90% RH, Non-condensing

Technical

CAN-8424 DeviceNet Remote I/O unit (4 slots) datasheet

Applications

	Diagnostic System of Wheeled Tractors Detecting Four Defect's Categories (EN)
	Selection of Diagnostic Functions in a Wheeled Tractor (EN)
