Analog Discovery Studio Max: Multi-Instrument Lab for Engineering Experimentation

£1,735.00; £1,735.00; (-0%)
Unit price: per

(Price excludes VAT)

The Analog Discovery Studio Max (ADS Max) is a versatile and comprehensive electronics lab solution for academic environments. It integrates 14 essential test instruments, inc. oscilloscope, waveform generator, logic analyzer, spectrum analyzer, DMM, power supplies, and protocol analyzer, into a...

Model: ADS Max

Quantity:

Subtotal: £1,735.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

Analog Discovery Studio Max: Multi-Instrument Lab for Engineering Experimentation

£1,735.00

Quantity:

Analog Discovery Studio Max: Multi-Instrument Lab for Engineering Experimentation

£1,735.00

Description
Features
Specifications
Technical
Applications

Description

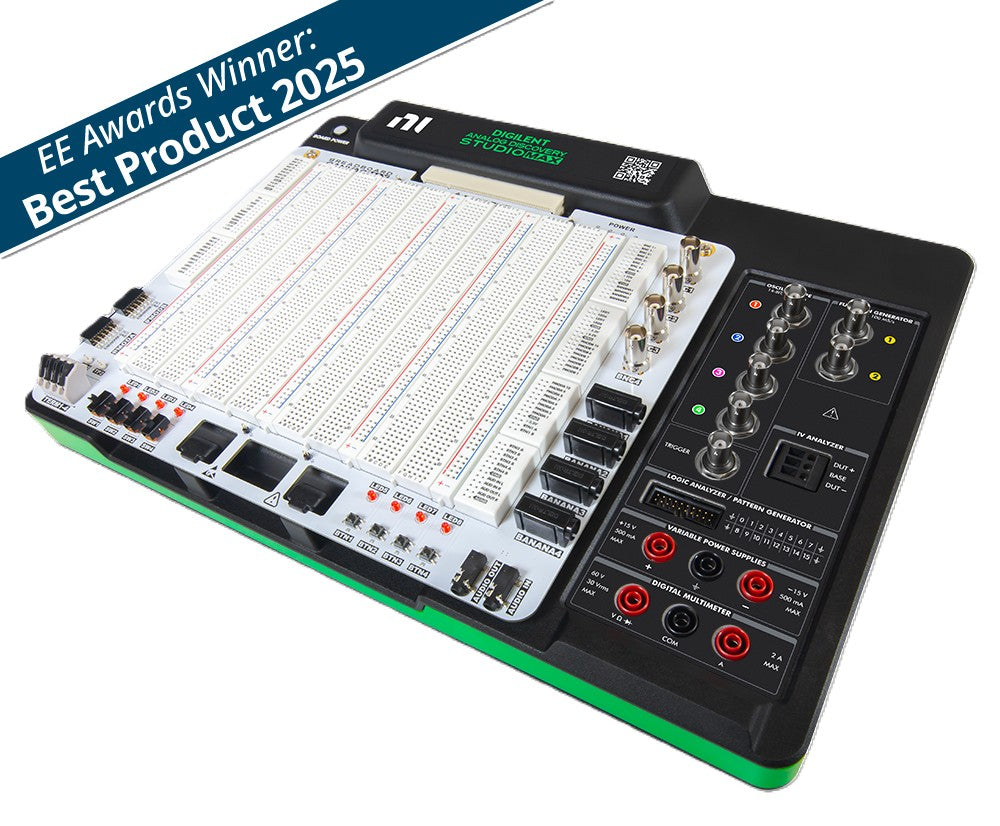

The Analog Discovery Studio Max (ADS Max) is a versatile and comprehensive electronics laboratory solution tailored for academic environments. It integrates 14 essential test instruments, including an oscilloscope, waveform generator, logic analyzer, spectrum analyzer, digital multimeter (DMM), power supplies, and protocol analyzer, into a single device. The LabVIEW WaveForms Toolkit enables further productivity and learning with a tight integration between the data acquisition capabilities of the ADS Max with LabVIEW's extensive analysis tools in an intuitive way.

One of the standout features of the ADS Max is its ability to facilitate seamless circuit prototyping. The device includes integrated power supplies and a breadboardable interface, enabling students to easily design and test circuits. This functionality is particularly beneficial for courses focused on circuit design, signal analysis, and embedded systems, where students can experiment with real-world applications and gain a deeper understanding of engineering principles.

The ADS Max is also designed to support a wide range of learning environments, from traditional classrooms and laboratories to remote learning setups. Its compact and comprehensive nature makes it ideal for students working from home or in limited lab spaces. Additionally, the included Digilent WaveForms software offers prebuilt instrument panels for immediate use, while APIs for LabVIEW, C, and Python allow for custom software development, providing flexibility for both instructors and students.

Furthermore, the ADS Max is part of a broader ecosystem that includes the Canvas Max and other subject-specific materials developed by academic partners. This ecosystem extends the platform's capabilities, offering ready-to-use materials for labs in various engineering topics such as wireless communications, power electronics, and digital circuits. By leveraging this ecosystem, educators can create dynamic and engaging learning experiences that cater to a wide range of educational needs and objectives.

Educational Discounts available - please contact us for a quote.

Features

All-in-One Design: Combines 14 essential test instruments, including an oscilloscope, waveform generator, and logic analyzer. Ideal for both in-classroom and remote learning environments.
ADS Max Ecosystem: Extends the platform with subject-specific materials and hardware from academic partners.
Breadboardable Interface: Allows for easy and quick circuit design and testing.
Software Support: Compatible with Digilent WaveForms, LabVIEW, C, and Python for custom software develop

Specifications

Oscilloscope: 14-bit resolution, up to 100 MS/s sampling rate, 50 V peak-to-peak input range, 50 MHz bandwidth.
Function Generator: 2 channels, 14-bit resolution, up to 100 MS/s, ±10 V output range.
Programmable Power Supplies: 1 V to 15 V and -1 V to -15 V supplies, max current of ±500 mA.
Static Power Supplies: Voltages of ±15 V, 5 V, and 3.3 V; max currents of ±500 mA at ±15 V, 2 A at 5 V, 310 mA at 3.3 V.
Digital Multimeter (DMM): 4.5-digit resolution; DC voltage ranges of 50 mV, 500 mV, 5 V, and 50 V; AC voltage ranges of 50 mV RMS, 500 mV RMS, 5 V RMS, 30 V RMS; AC current range of 2 A RMS.
Digital I/O: 16 channels for versatile digital signal interfacing, plus 8 in the Canvas Max connector.

Technical

What's included:

Note:UK Power cables is included. The probe bundle is available for purchase separately (pn 240-153).

One (1) ADS Max
One (1) Analog Discovery Canvas Max
One (1) Power supply, 115-230 VAC, 60 Hz, 19 V, 90 W

(UK power cord)

Four (4) Screws, M4 thread, 6mm length
One (1) USB cable, type A- type C, 2M
One (1) Screwdriver
One (1) Flywire cable 2x10, keyed

Recommended Accessories

Analog Discovery Studio Max Cables & Probe Kit, which includes the following:

1x Flywire cable 2x10, keyed
1x 6-pin header and gender changer (5-pack)
1x Breadboard Wire kit
1x DMM leads, Pair. 1 black + 1 red
4x Oscilloscope probe, 150MHz
1x Banana Plug to Alligator Clips, black and red
2x BNC Male to Alligator Clip 650mm
2x Coax Cable, BNC male to BNC male (12 in)
1x Cable, Banana to Banana, Red (36in)
1x Cable, Banana to Banana, Black (36in)

Safety Notice:
When using oscilloscope probes with a Test and Measurement device, always verify the device’s voltage specifications to ensure you do not exceed its input limits. Exceeding these limits may result in damage to the equipment or pose a safety hazard.

Applications
