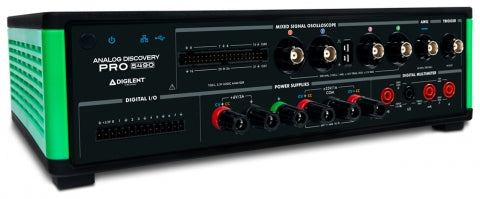

The Analog Discovery Pro 5000 Series devices, the ADP5250, ADP5470, and ADP5490, are Digilent’s most ambitious mixed signal oscilloscopes to date, bringing higher sample rates, wider bandwidth, and more power to your benchtop.

Classifying the three ADP5000 devices as ‘just’ mixed signal oscilloscopes would be doing them a disservice. Each product sports an integrated CAT II Digital Multimeter, three programmable power supplies, a dedicated trigger line, and arbitrary waveform generator to complement the mixed signal oscilloscope. With 34 digital inputs operating at 1 GS/s working in tandem with the analog system, the rugged 5000 Series devices provide a range of bandwidths and sample rates for analog inputs to fit your needs – from a base of 100 MHz at 1 GS/s, to 350 MHz at 1.5 GS/s, all the way up to 500 MHz at 2 GS/s.

Driven by Digilent’s free WaveForms software and with everything included with a one-time purchase of the hardware, the Analog Discovery Pro 5000 Series is more than just a tool – it’s analysis uncompromised.

Features

Analog Inputs

Four BNC input channels with 8-bit resolution with up to ±20 V input range
500 MHz bandwidth, 2 GS/s per channel

Analog Output

One BNC output channel with 14-bit resolution, ±12 V output range
40 MHz bandwidth, up to 200 MS/s

Logic Analyzer

34 digital inputs with configurable voltage threshold
Up to 1 GS/s per channel Power Supplies

· Three programmable power supplies (0 V to 6 V, 0 V to 25 V, 0 V to -25 V)

· Up to 3 A output on the 6 V rail, up to 1 A each on the ±25 V rails

· Integrated hardware readback of voltage and current output for each rail

Additional Features

· Integrated CAT II Digital Multimeter

· Triggering and cross triggering between instruments

Includes

USB A to B cable
1x14 Digital I/O Screw Terminal Adapter
2x20 Logic Analyzer MTE Cable
Four T2500 500 MHz x1/x10 Oscilloscope Probes
Digilent Screwdriver
One Set of Red and Black DMM Probes
US IEC Cable, with EU and UK adapters

Specifications

For full specifications, please see datasheet below.

Technical

ADP5000 series Mixed signal Oscilloscope datasheet

Applications

Signal Analysis
Spectrum Analysis
Network Analyzer
