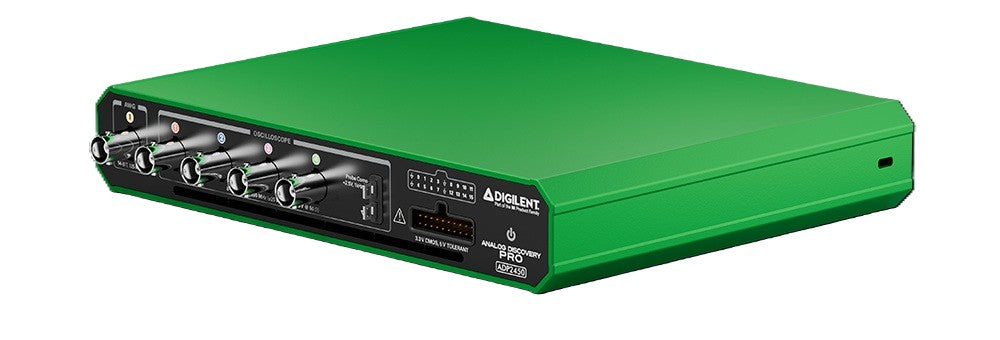

ADP2450 USB, Mixed Signal USB Oscilloscope, Waveform Generator and Logic Analyzer

Analog Inputs:

• Four BNC input channels with 8-bit resolution with up to ±25 V input range
• 200+ MHz bandwidth, 1 GS/s interleaved
• 10 different hardware input ranges from ±25 mV to ±25 V for multiple levels of precision
• User selectable 50 Ω or 1 MΩ input impedance
• Many additional views including FFT, Histogram, Persistence, Eye Diagram, and Analog-to-Digital plots
• Complex trigger support including Edge, Pulse, Timeout, Glitch, Transition, and Window conditions
• Dedicated Spectrum Analyzer, Network/Bode Plot Analyzer, and Impedance Analyzer instruments

Analog Output:

• One BNC output function generator channel with 14-bit resolution, ±5 V output range
  • 15+ MHz bandwidth, up to 125 MS/s
• Standard, Advanced, and Custom Waveforms supported
  • Sine, Square, Triangle, Ramp, DC, Pulse, Noise, Burst
  • Uni and Bidirectional Frequency and/or Amplitude Sweep
  • Multiple modulation techniques including AM, FM, PM, and Summation

Digital Inputs and Outputs:

• 16 digital I/O for the Logic Analyzer and Pattern Generator with fully configurable tri-state buffers
• Internally clocked up to a 1.2 GS/s sampling rate
• Many protocol analyzers including SPI, I2C, UART, 1-Wire, CAN, GPIB, I2S, LIN, JTAG, Manchester, SAE JA1850, and Quadrature Decoders
• Protocol generation support for SPI, UART, I2C, CAN, HDMI CEC, SWD, and AVR
• Two bidirectional BNC triggers for external and internal triggering

Software Support

• Digilent’s free and powerful WaveForms software for Mac, Windows, and Linux
• WaveForms SDK for custom applications and scripting through C/C++, Python, C#, Visual Basic

Additional Features:

• Dual Mode to operate two devices simultaneously for 8 analog inputs, 32 digital I/Os, and 2 AWGs
• Automatic device phase adjustment between devices in Dual Mode
• USB 3.2 (5 Gbps) transfer speeds
• Triggering system allows Scope, AWG, and Digital I/O subsystems to trigger off of each other or external trigger inputs and forward triggers to other instruments
• Complex and custom math for each instrument to support the filtering and generation of any signal
• Deep Buffer Memory that can be freely allocated between Analog and Digital systems
• Memory Segmentation with only 1 µs trigger re-arm latency between high-speed repeated captures
• Metal enclosure with DIN rail support for easy mounting

Other:

• Dimensions (W x D x H): 210 mm x 164.5 mm x 37.9mm (8.27" x 6.48" x 1.49")
• Dimensions with connectors (W x D x H): 210 mm x 191.4 mm x 37.9mm (8.27" x 7.54" x 1.49")
• Weight: 993 g (2.19 lbs)
